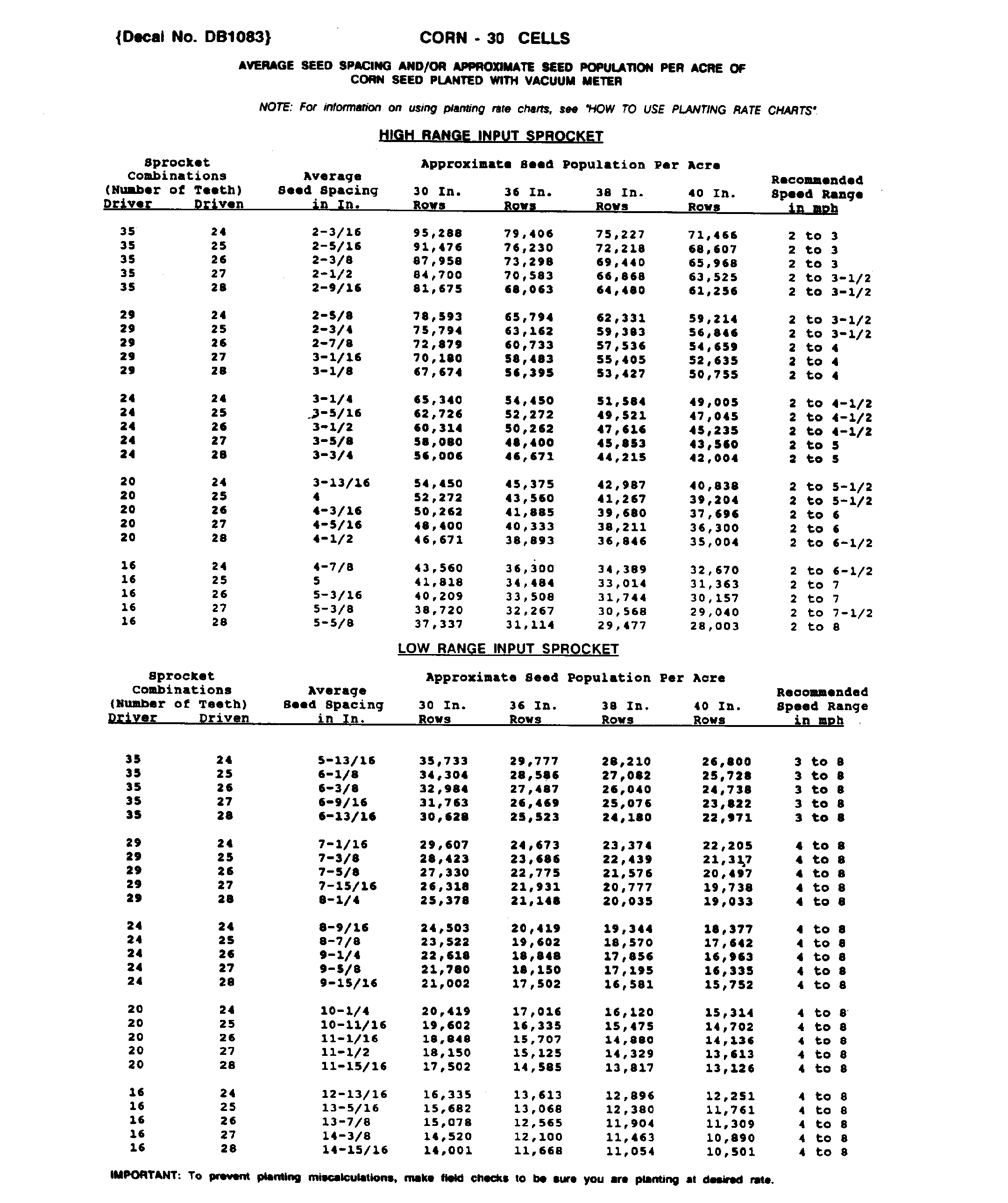

Corn-30 in. to 40 in. Rows-Meter Setup and Rate Chart

NOTE: If double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

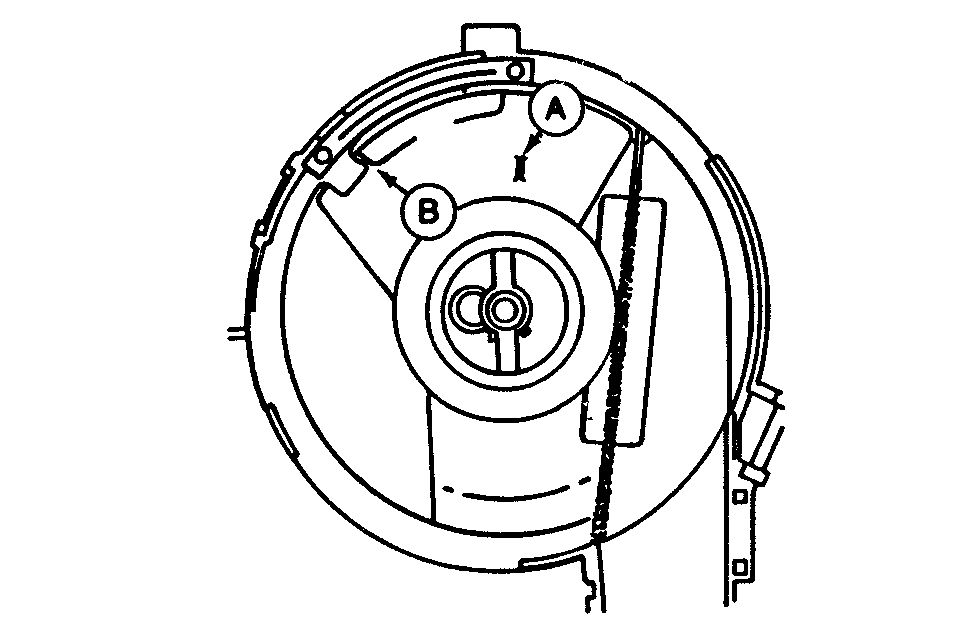

Move vacuum meter baffle tab (A) to upper position (B).

Use regular (long) vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see VACUUM LEVEL FOR CORN USING H136478, A43215, OR A50617 SEED DISKS in Operating Vacuum Meter section.


A-Tab
B-Upper Position

A41048

Upper Baffle Position

A47009

Regular (Long) Brush

OUO6074,00008F8 -19-07APR04-1/2

A50402

OUO6074,00008F8 -19-07APR04-2/2
