Sugar Beets-22 in. to 38 in. Rows-Meter Setup and Rate Chart

NOTE: If double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

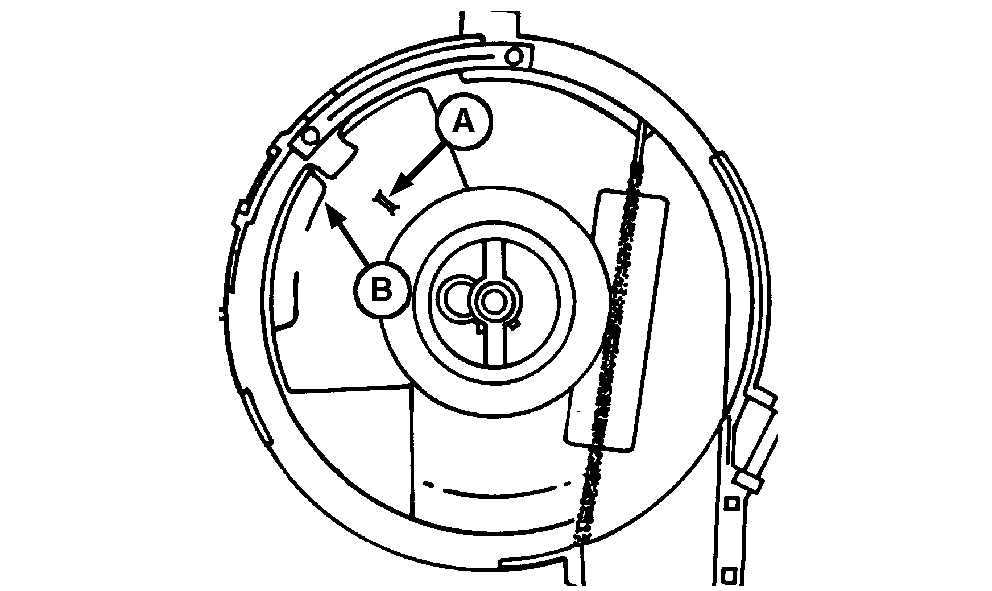

Move vacuum meter baffle tab (A) to lower position (B).

Use (regular) long vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see VACUUM LEVEL FOR SUGAR BEET SEED in Operating Vacuum Meter section.


A-Tab
B-Lower Position

A47013

Lower Baffle Position

A47009

Regular (Long) Brush

OUO6074,00008F9 -19-04DEC03-1/2

A50440

OUO6074,00008F9 -19-04DEC03-2/2
