Large Edible Beans (Cell Type Seed Disk)-30 in. to 40 in. Rows-Meter Setup and Rate Chart

NOTE: If double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

Move vacuum meter baffle tab (A) to upper position (B).

Use short vacuum meter brush.

For talc application, see USE OF TALC LUBRICANT in Operating Vacuum Meter section.

For vacuum level, see SETTING VACUUM LEVEL in Operating Vacuum Meter section.


A-Tab
B-Upper Position

H42255

Upper Baffle Position

A47011

Short Brush

OUO6074,00008FC -19-04DEC03-1/2

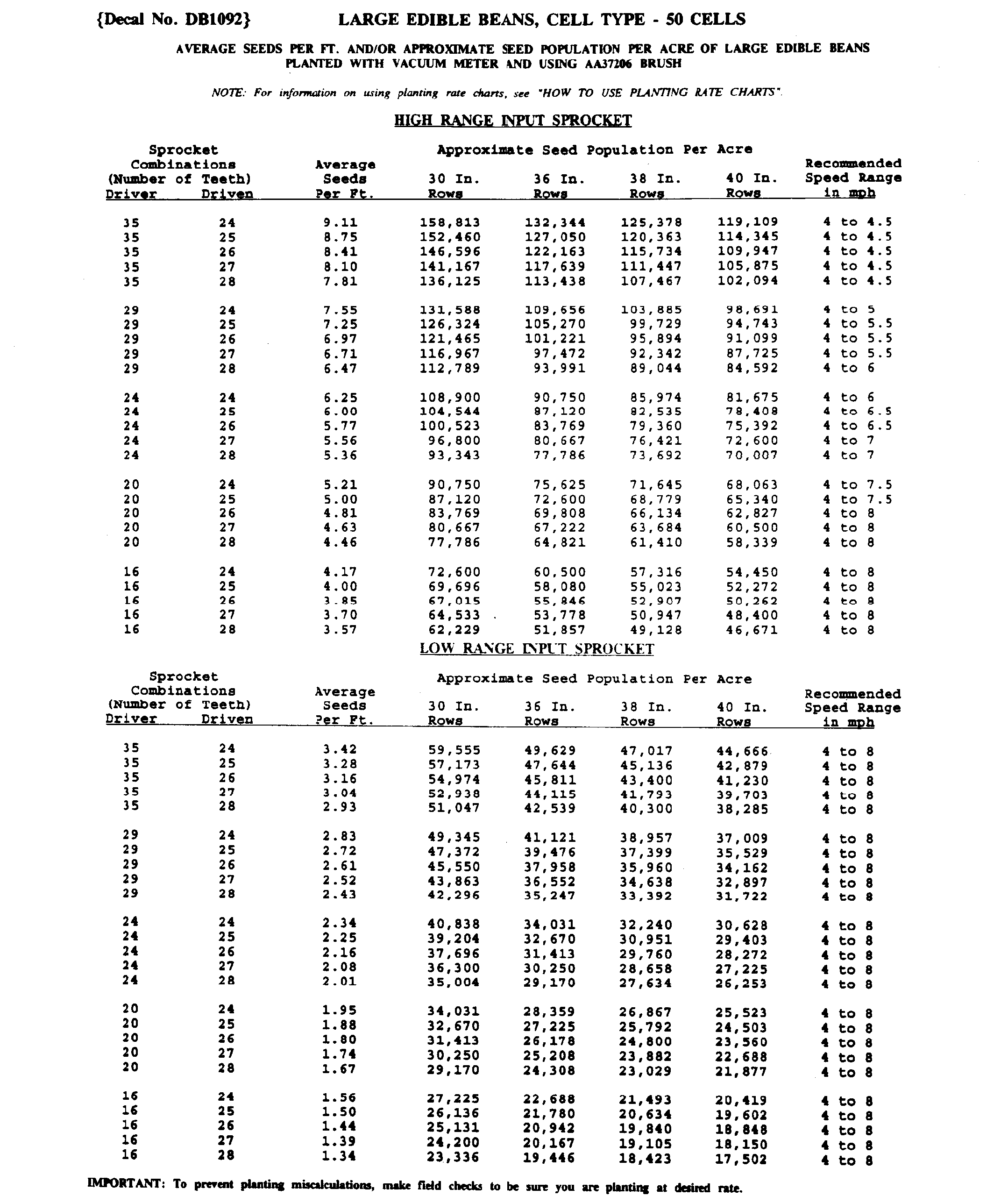

A50452

OUO6074,00008FC -19-04DEC03-2/2
