30-60 Series Tractor with 3 SCV's Less Power Beyond

Hose Connections
Case Draina A-Must Be Connected First
Hose Identification Pressure Return
Frame Lift B C
Vacuum System E D
Variable Rate Drive G F
aCase drain hose MUST be attached PRIOR to any hose being connected.



IMPORTANT: Vacuum and Variable Rate Drive RETURN hoses, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes.

This table shows connections for the maximum number of common components.

If planter is equipped with independent markers and vacuum, VRD would not be an option. Power beyond kits are available to control a fourth function.

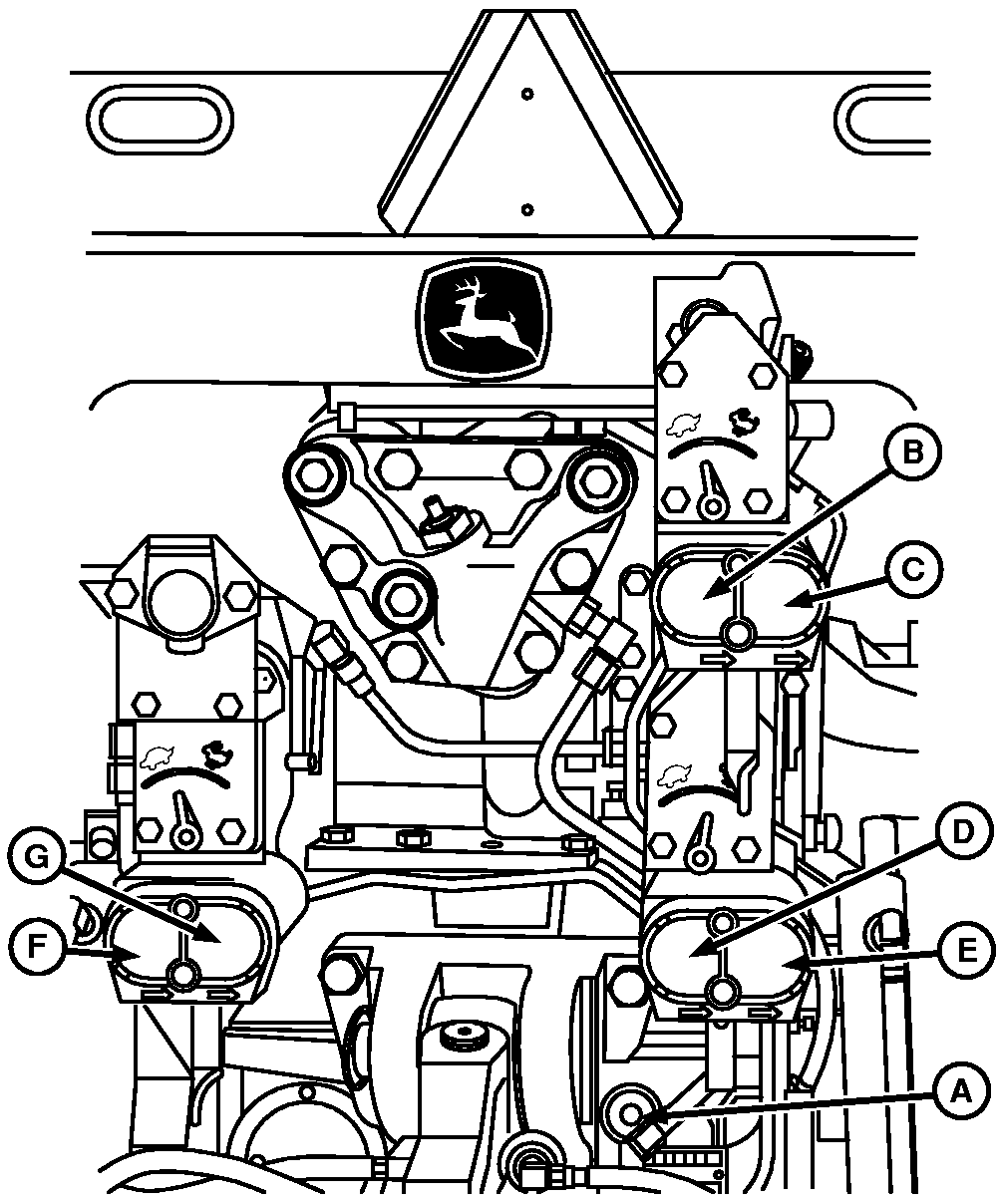

A53296

30-60 Series Tractor with 3 SCV's Less Power Beyond


A-Sump Port (Fan Motor Case Drain Connection)
B-SCV I (Extend)
C-SCV I (Retract)
D-SCV II (Extend)
E-SCV II (Retract)
F-SCV III (Extend)
G-SCV III (Retract)

OUO6074,0000A47 -19-07MAR05-1/1
