7000 Series Tractor with 4 SCV's
| Hose Connections |
| Case Draina |
D-Must Be Connected First |
| Hose Identification |
Pressure |
Return |
| Frame Lift |
E |
F |
| Independent Markers |
G |
H |
| Vacuum System |
J |
I |
| Variable Rate Drive |
L |
K |
| aCase drain hose MUST be attached PRIOR to any hose being connected. |
IMPORTANT:
Vacuum RETURN hose, with special tip, MUST be connected to tractor EXTEND port. This allows the motor to be shut off by placing SCV lever directly into "float" position, avoiding damaging pressure spikes. This also applies to variable rate drive when connected to an SCV.
This table shows connections for the maximum number of components.

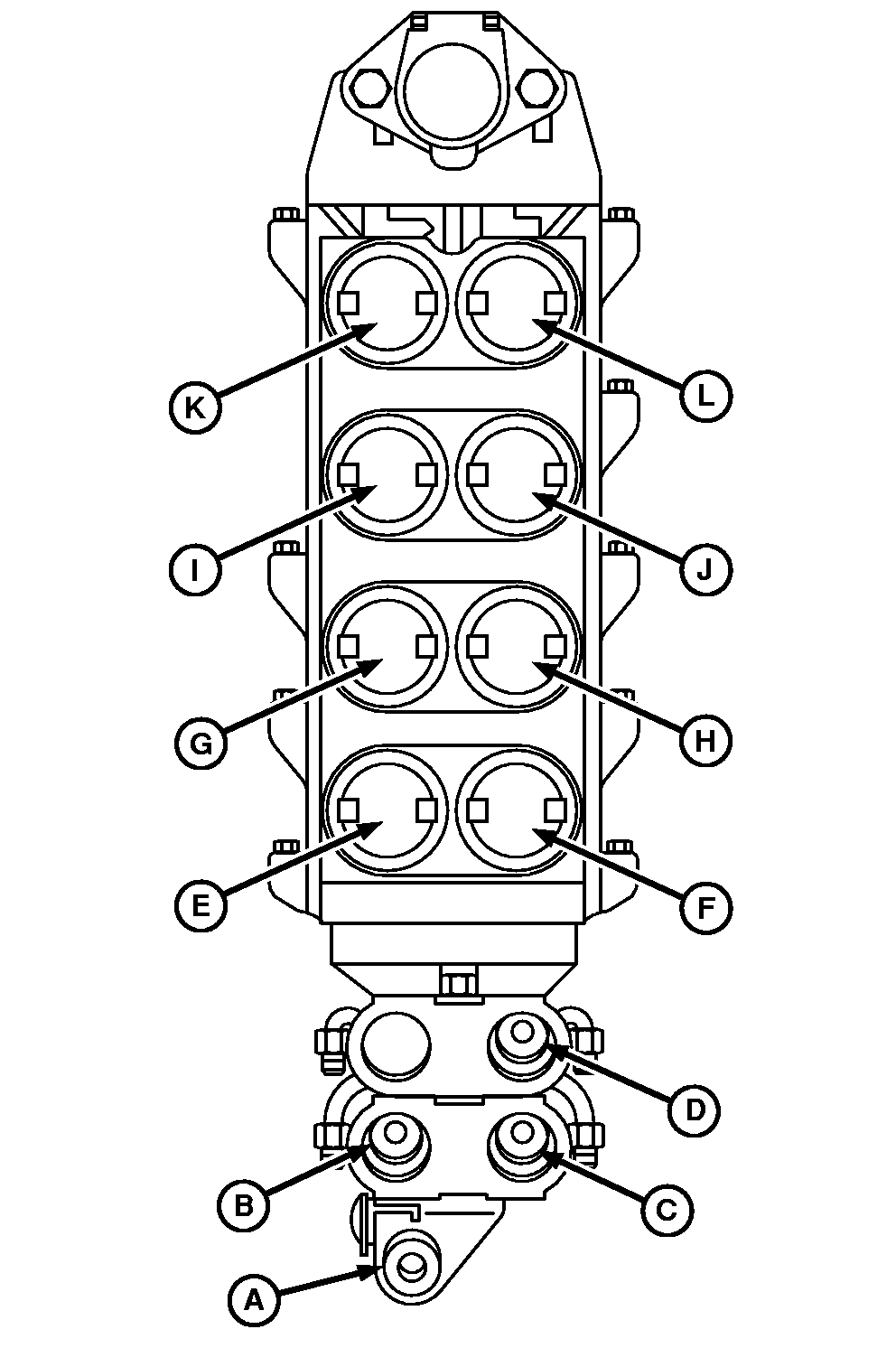

A-Load Sense Coupler (Power Beyond Load Sense)
B-Auxiliary Pressure Port (Power Beyond Pressure)
C-Auxiliary Return Port (Power Beyond Return)
D-Sump Port (Fan Motor Case Drain Connection)
E-SCV I (Extend)
F-SCV I (Retract)
G-SCV II (Extend)
H-SCV II (Retract)
I-SCV III (Extend)
J-SCV III (Retract)
K-SCV IV (Extend)
L-SCV IV (Retract)
|
