6000, 6010, and 6020 Series Tractors

Machine is shown with power beyond kit AR113482

Planter Hose Connections
Case Draina (if equipped) Case drain line must be connected first. Connect case drain line to tractor motor return port (not shown).
Hose Identification Pressure Return
Frame Lift and Auto Markers D E
Independent Markers (if equipped) F G
Vacuum System (if equipped) I H
Variable Rate Drive on power beyond with load sense (C) B A
aCase drain hose MUST be attached PRIOR to inlet and return hoses being connected.



Vacuum may be controlled using tractor SCV, or may be controlled by planter flow control valve. If using tractor SCV, planter flow control valve should be fully open. Tractor must be equipped with 300 Series SCV's to control flow without planter flow control valves. Incremental changes required are too fine for the Standard SCV valves. Also, standard valves cause extreme vacuum fluctuations when other hydraulic functions are operated.

It is recommended to connect VRD to an SCV if one is available. If an extra SCV in not available, connect to power beyond.

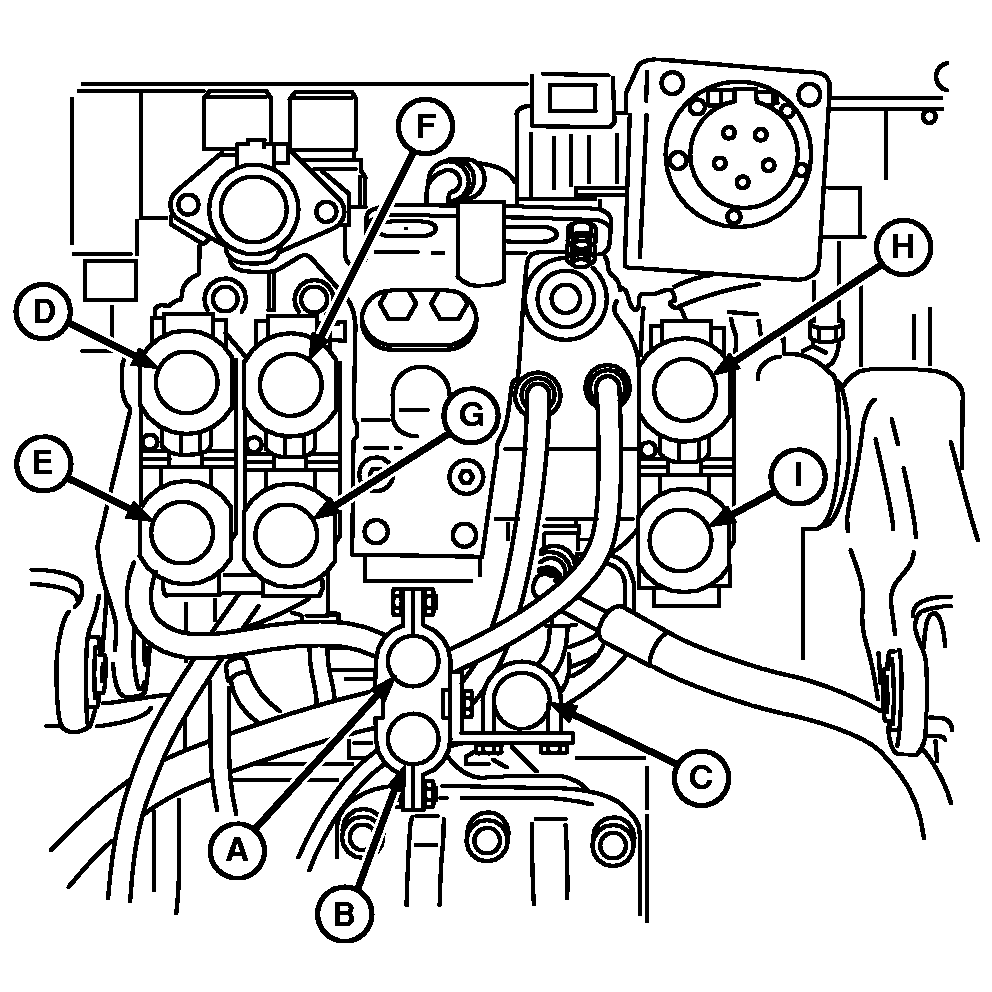

A53359


A-Return Port (Power Beyond Return)
B-Auxiliary Pressure Port (Power Beyond Pressure)
C-Load Sense Coupler (Power Beyond Load Sense)
D-SCV I (Extend)
E-SCV I (Retract)
F-SCV II (Extend)
G-SCV II (Retract)
H-SCV III (Extend)
I-SCV III (Retract)

OUO6074,0000A4B -19-16MAR04-1/1
