Setting Electro/Hydraulic Selective Control Valves-7020 and 8000 Series Tractors

NOTE: If tractor is not equipped with enough SCV outlets, a Power Beyond Kit is available to power hydraulic motors.

Press appropriate touch control switch (A) I through V to program each SCV.

FRAME FUNCTIONS and AUTOMATIC MARKERS: Press touch control switch I to enter programming mode. Adjust flow rate with flow control knob (B). Set detent time to 10 seconds with time detent knob (C). Push tractor SCV lever into detent and release to operate frame functions. Reduce flow rate and time when folding and unfolding.

INDEPENDENT MARKERS (if equipped): Press touch control switch II to enter programming mode. Set flow rate to 5 with control knob (B) and detent time to 10 seconds with control knob (C). Adjust in the field as required.

VARIABLE RATE DRIVE: (if equipped) Press appropriate touch control switch. Set flow rate to 10 with control knob (B). Set detent time to CONSTANT with control knob (C). Push tractor SCV lever into detent and release to operate variable rate motor.

VACUUM MOTOR OPTIONS:

NOTE: If vacuum is attached to power beyond no cab controls are used. Vacuum level is then controlled by the in-line flow control valve. Shut off tractor engine to turn off vacuum motor.

1. USING IN-LINE FLOW CONTROL VALVE AND TRACTOR SCV: Press appropriate touch control switch to adjust hydraulic vacuum motor function. Set knob (B) to 10 and use in-line flow control valve to adjust vacuum once seeds are on disks. Use knob (C) to set detent time to CONSTANT. Push tractor SCV lever into detent and release to operate vacuum motor. Place SCV in FLOAT to turn off vacuum motor

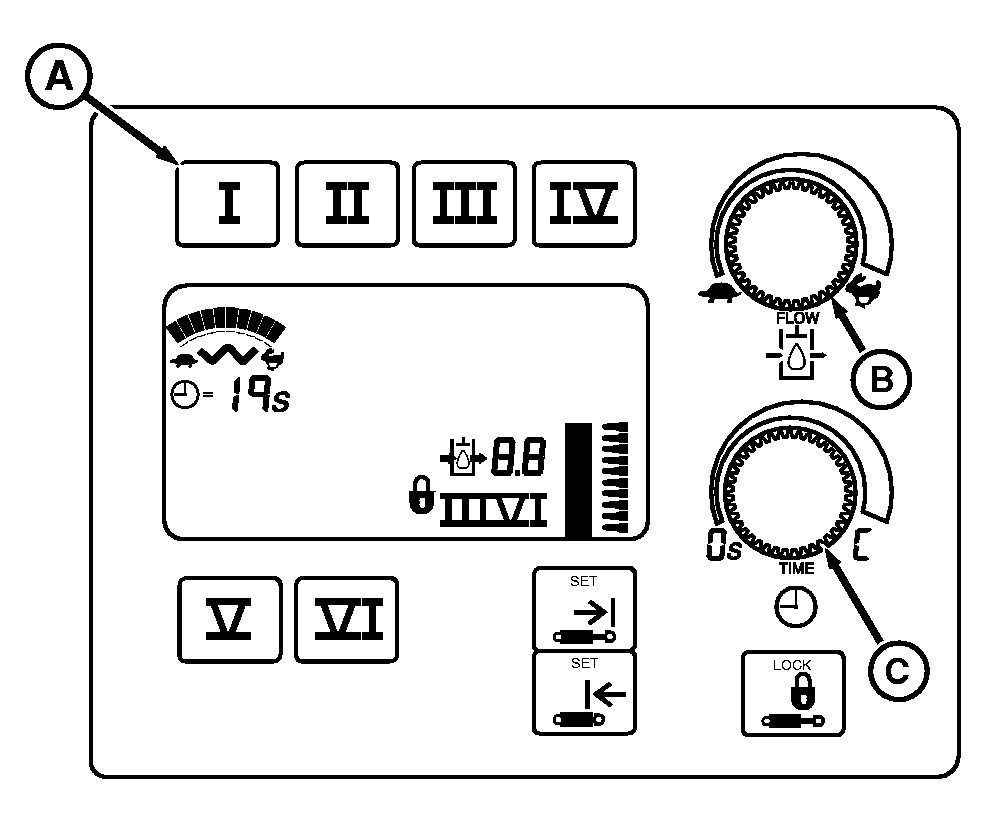

A52529

7720, 7820, 7920 Series

N48104

8000 Series


A-Touch Control Switch
B-Flow Control Knob
C-Time Detent Knob

OUO6074,0000AA2 -19-13APR04-1/2

2. USING CAB CONTROLS AND TRACTOR SCV: Press appropriate touch control switch to adjust hydraulic vacuum motor function. Use control knob (B) to set vacuum. Start with a low flow setting and adjust for correct vacuum level after seeds are on disks. Push tractor SCV lever into detent and release to operate vacuum motor. Place SCV in FLOAT to turn off vacuum motor.

FUNCTION FLOW DETENT (TIME)
Machine Raise/Lower 10
Start at 4 while folding/unfolding		 10 seconds or as required for full extend/retract
Independent Markers (if equipped) Start at 5 10 seconds or as required for full extend/retract
Variable Rate Drive (If equipped) 10 Constant "C"
Vacuum (with flow control valve) 10 Constant "C"
Vacuum (without flow control valve) Start at 4
Adjust for correct vacuum after seeds are on disks.		 Constant "C"
Vacuum (with flow control valve) (If equipped) 10 Constant "C"



OUO6074,0000AA2 -19-13APR04-2/2
