Detaching Machine From Tractor

1. Lower machine to the ground.

2. TRACTORS WITH ELECTRO/HYDRAULIC SCV'S: Leave engine running.

TRACTORS WITH MECHANICAL SCV'S: Stop engine, turn key switch on.

3. Place SCV levers in float position.

4. Turn tractor key switch off.

5. Disconnect all hydraulic hoses and harnesses.

6. Attach dust cover onto machine harness connector.

OUO6074,0000AAA -19-22MAR04-1/5

7. Remove pin (A) and remove jack from storage position.


A-Pin

A36527

OUO6074,0000AAA -19-22MAR04-2/5

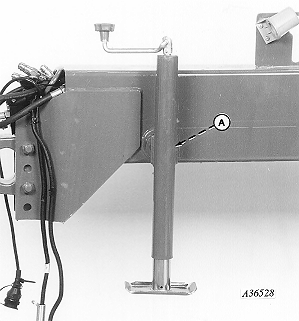

8. Move jack into position and attach with pin (A) and quick-lock pin.


A-Pin

A36528

OUO6074,0000AAA -19-22MAR04-3/5

Machines with Hitch Clevis

Raise hitch with jack until weight of hitch is transferred from tractor drawbar to jack.

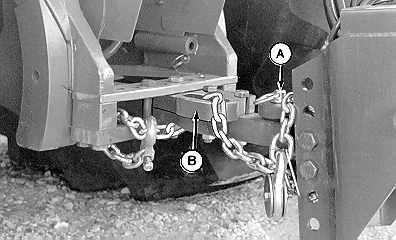

Remove spring-locking pin and hitch pin (A).

Remove safety chain from tractor drawbar support and chain support (B).

Drive tractor slowly forward.


A-Hitch Pin
B-Chain Support

A41075

OUO6074,0000AAA -19-22MAR04-4/5

Machines with Hitch Ring

Raise hitch with jack until weight of hitch is transferred from tractor drawbar to jack.

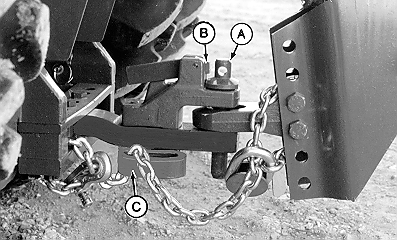

Raise handle on pin latch (B) and remove pin (A).

Remove safety chain from tractor drawbar support and chain support (C).

Drive tractor slowly forward.


A-Pin
B-Pin Latch
C-Chain Support

A41076
