OMA82875: 1760 and 1760NT Drawn Conservation 6-RN, 8-RN, 8-RW and 12-RN Wing-Fold Planters, Block File: OUO6074_0000AAC_19

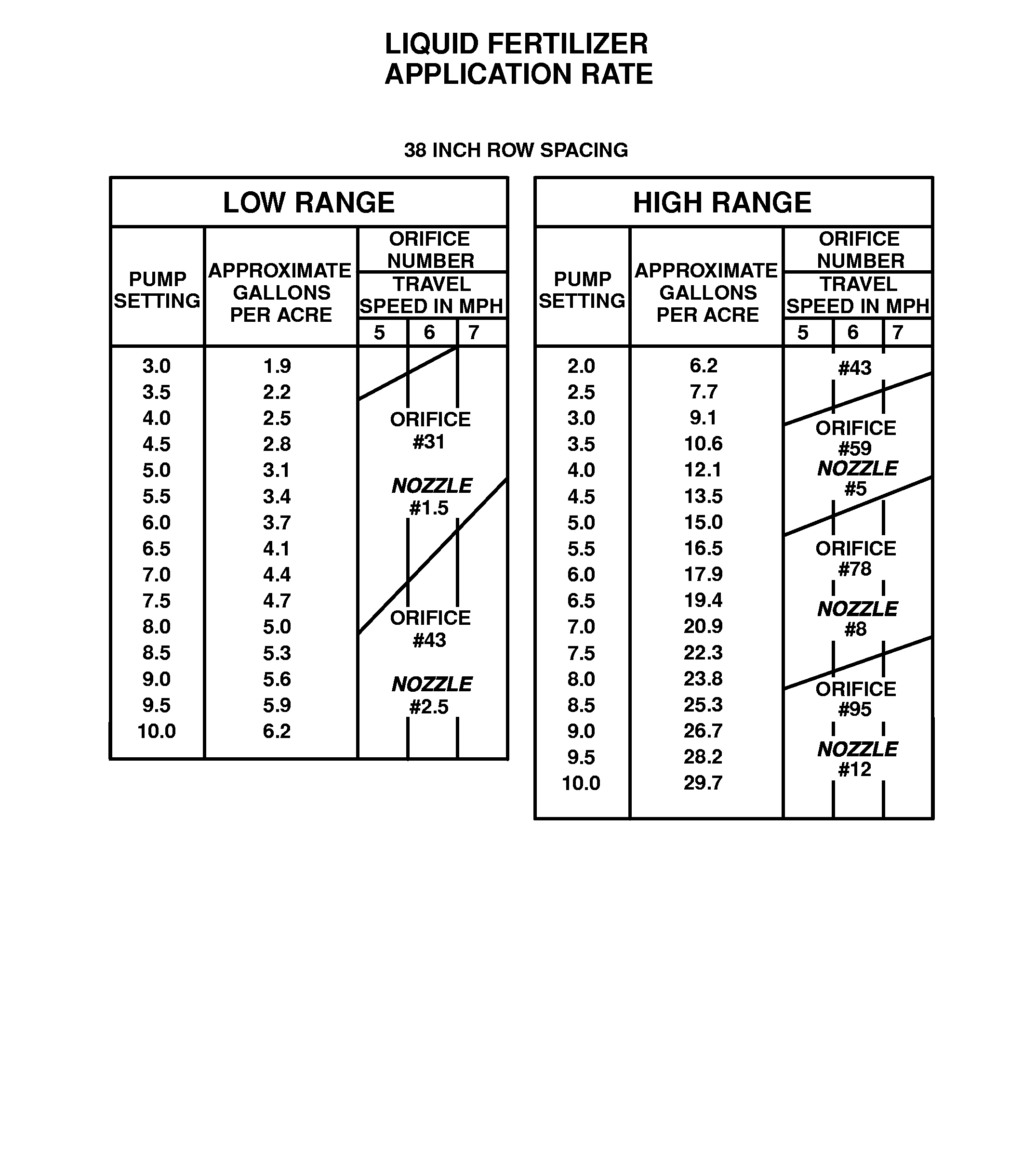

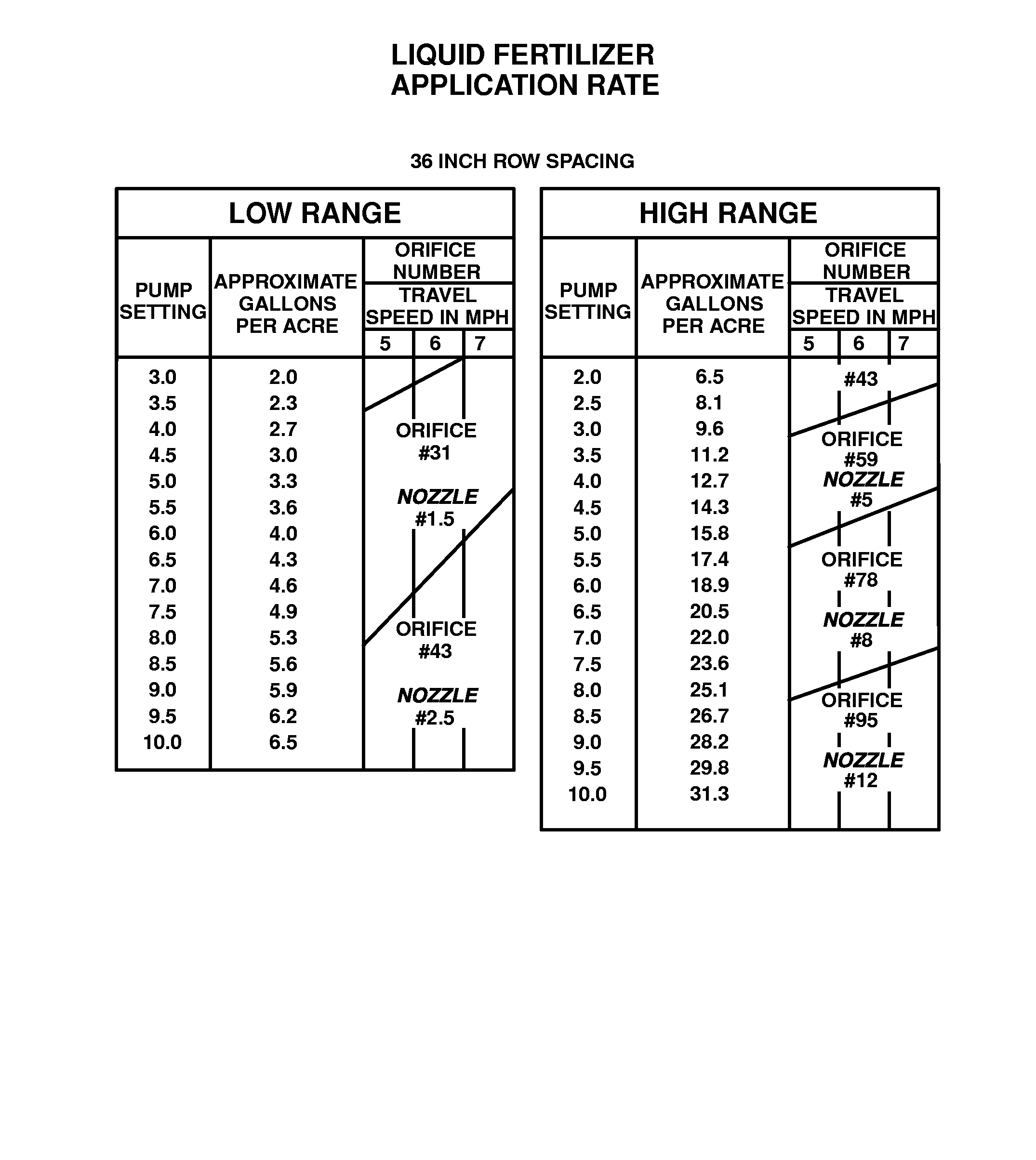

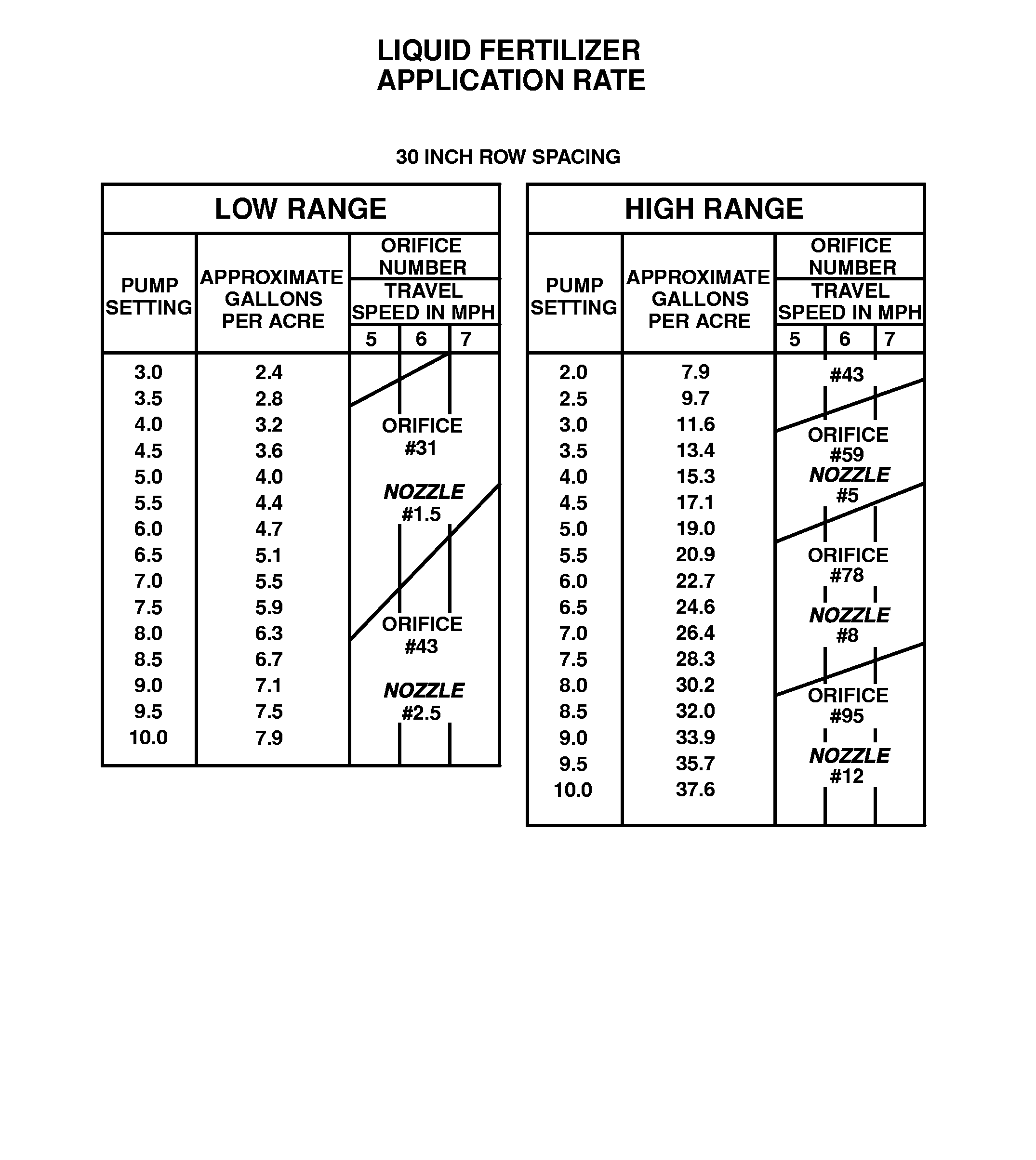

The rate charts (A) are affected by many factors such as wheel slippage and material used. Use these charts only as a guide.

A-Rate Chart

1700 SERIES PLANTER FERTILIZER MATRIX - TO ENSURE ROW TO ROW RATE CONSISTENCY FOR LIQUID FERTILIZER ATTACHMENT WITH PISTON PUMP
DELIVERY SYSTEM	FRAME MOUNTED SINGLE DISK OPENER	UNIT MOUNTED DOUBLE DISK OPENER	SINGLE DISK UNIT MOUNTED INJECTION OPENER	FRAME MOUNTED DOUBLE DISK OPENER	LESS OPENERS
PIPE MANIFOLD DELIVERY SYSTEM	PROPER ORIFICE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi).	PROPER ORIFICE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi).	PROPER NOZZLE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi). NO ORIFICES REQUIRED.	PROPER ORIFICE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi).	PROPER ORIFICE REQUIRED FOR RATE AND TRAVEL SPEED - PRESSURE TO BE BETWEEN 138 kPa (1.4 bar) (20 psi) AND 483 kPa (5 bar) (70 psi). ORIFICES TO BE REMOVED FOR INJECTION OPENERS WITH NOZZLES.

OUO6074,0000AAC -19-22MAR04-1/4

OUO6074,0000AAC -19-22MAR04-2/4

OUO6074,0000AAC -19-22MAR04-3/4

OUO6074,0000AAC -19-22MAR04-4/4
