Adjusting Meter Pro Shaft Drive

1. It may be necessary to align gearbox drive lugs with drive tabs on meter.

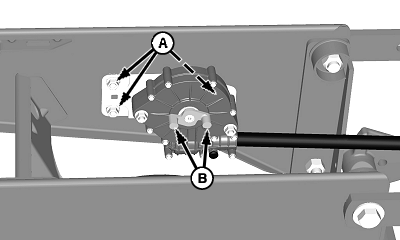

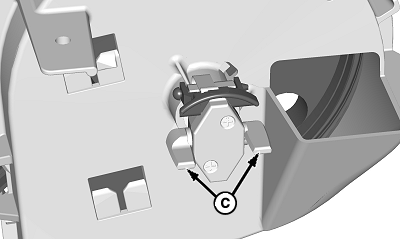

2. Loosen nuts (A) and adjust gearbox assembly so drive lugs (B) align with meter tabs (C).

3. Install hoppers and use a small mirror to check alignment of drives.

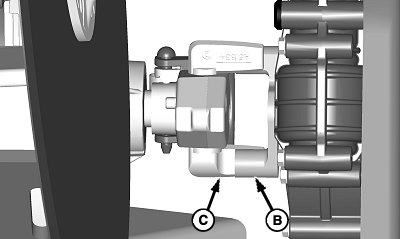

4. When meter drive is misaligned, drive lugs (B) can be seen outside meter tabs (C) as shown.

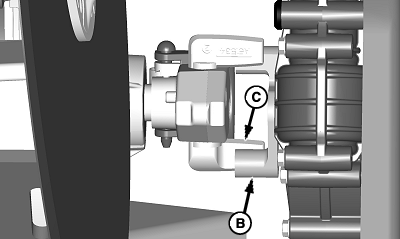

5. When meter drive is properly aligned, drive lugs (B) and meter tabs (C) are in line as shown.


A-Nuts
B-Drive Lugs
C-Meter Tabs

A54202
A54203
A54204

Drives Out Of Alignment

A54234

Drives In Alignment
