Using Warning Lights

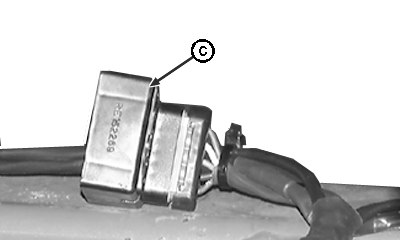

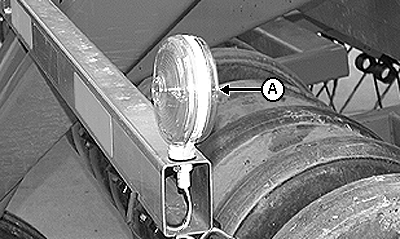

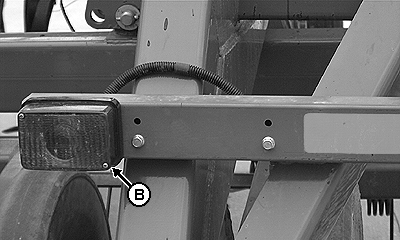

Check that warning lights (A and B) are clean and in proper working condition. Clean or replace as necessary. Starting with 1999 model year production, lighting on the drill has been enhanced. A lighting enhancement module (C) has been incorporated into the lighting circuit. This module causes red tail lights to function as turn signals. During normal transport, both amber warning lights will flash in unison at high intensity and both red lamps will illuminate at low intensity. When a turn is signaled, the red tail lamp in direction of turn will flash at high intensity and in unison with the amber lamp in direction of turn. The opposite side amber and red lamps will illuminate steady at high intensity.
|
|
CAUTION:
When transporting the machine on a road or highway at night or during the day, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.
AG,OUO6023,40 -19-19MAR99-1/1 |
