Adjusting 2-Bar Coil Tine Harrow Angle-If Equipped

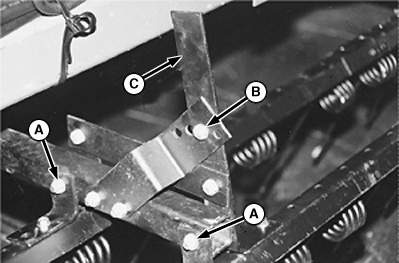

To change harrow operating aggressiveness, loosen hardware (A), remove hardware (B) and move lever (C) to align holes which provide desired results. Install hardware through new attaching hole and tighten pivot hardware.

A-Nut
B-Hardware
C-Lever
