Tightening Press Wheel Arm Frame Brackets

IMPORTANT: To prevent frame wear and to keep press wheels aligned with openers, check and tighten hardware after first ten hours of operation and periodically thereafter.

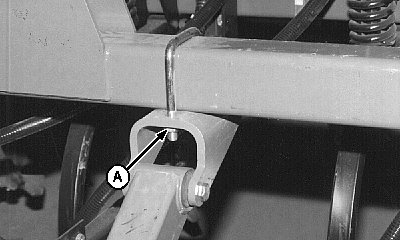

Check U-bolt (A) and tighten nut to specification after first ten hours of operation.

Specification

U-bolt Nut -Torque 169 N·m (125 lb-ft)

A41860


A-U-bolts

HX,1820OMI,A8A -19-11MAR98-1/1
