Operating Row Markers

1. Pull selector valve knob (A) out, to operate row markers.


A-Selector Valve Knob

A42037

HX,1820OMJ,A22A -19-18MAR05-1/2

NOTE: Alternating valve shifts to extend opposite side marker, after extending one marker to full out position.

2. ONE ROW MARKER: Move SCV II tractor control lever (A) forward to extend row marker.

TWO ROW MARKERS: Move SCV II tractor control lever (A) forward to extend one row marker. Briefly move lever rearward to shift alternating valve and then forward to extend opposite side marker.

3. Pull and hold lever rearward to retract row marker(s).


A-Lever

A42082

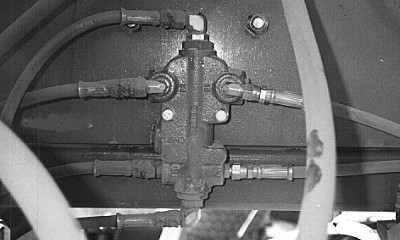

Alternating Valve

A25573

With Mechanical SCV Controls

N48108

With Electro/Hyd SCV Controls
