Exceeding Operating Guidelines

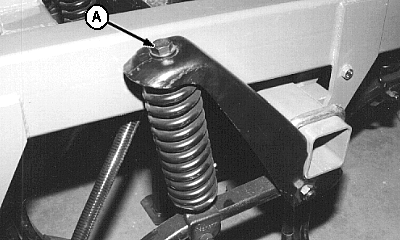

Operating guidelines for C-shanks are being exceeded when bolt head (A) continually rides above spring bracket.

If operating guidelines are exceeded, standards can be bent or broken and frame damaged.

A-Bolt Head

HX,1820OMJ,A4A -19-11MAR98-1/1
