Folding Wings for Transport

1. Place tractor transmission in "Park" and/or set brakes and start engine.

causym CAUTION: To help prevent severe injury or death to you or someone else:

Keep all persons away from machine when raising and lowering wings.

Always locate machine on level ground when raising and lowering wings.

Never raise or lower wings when moving.

2. Stop machine on level ground and open service lockup valve.

3. Raise machine until bottom of openers are 51 mm (2 in.) above ground using depth control.

4. Activate push/pull valve to select wing fold (if equipped).

HX,1820OML,A10B -19-24MAR05-1/2

IMPORTANT: Be sure press wheels are on ground during folding or unfolding to prevent machine damage.

5. Pull SCV II (A) to operate wing fold. Transport wheels will lower, then wings will fold.

6. Completely retract press wheels and caster wheels using depth control cylinders to reduce overall width and ensure depth control plates remain in correct position.

7. Install transport wheel cylinder locks. See INSTALL TRANSPORT WHEEL CYLINDER LOCKS in this section.

8. Close service lockup valve.


A-SCV II

A25573

With Mechanical SCV Controls

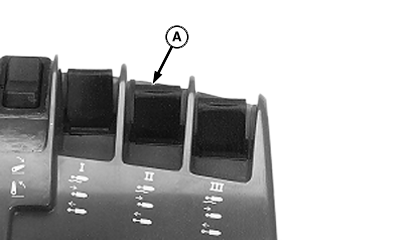

N48108

With Electo/Hyd SCV Controls

HX,1820OML,A10B -19-24MAR05-2/2
