Attaching Warning Light Plug

NOTE: Field installation of 7-Terminal Auxiliary Electric Kit (RE17282) is required, if towing tractor is not equipped with an electrical outlet.

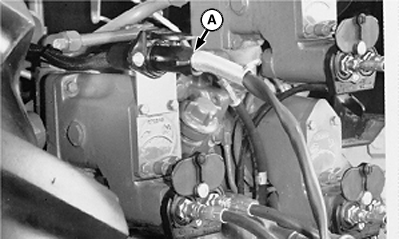

1. Attach warning light plug (A) to tractor.

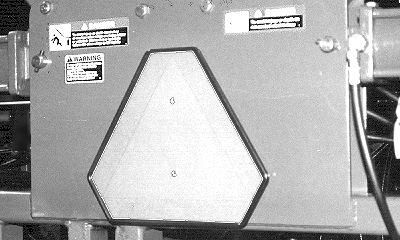

2. For maximum machine visibility, be sure warning lights, reflectors and SMV sign are clean.

A-Plug

HX,1820OML,A3A -19-11MAR98-1/1
