Positioning Tractor Drawbar for Transport (Four Wheel Drive Tractors)

NOTE: Drawbar on two-wheel drive tractors should be pinned tightly in center position at all times.

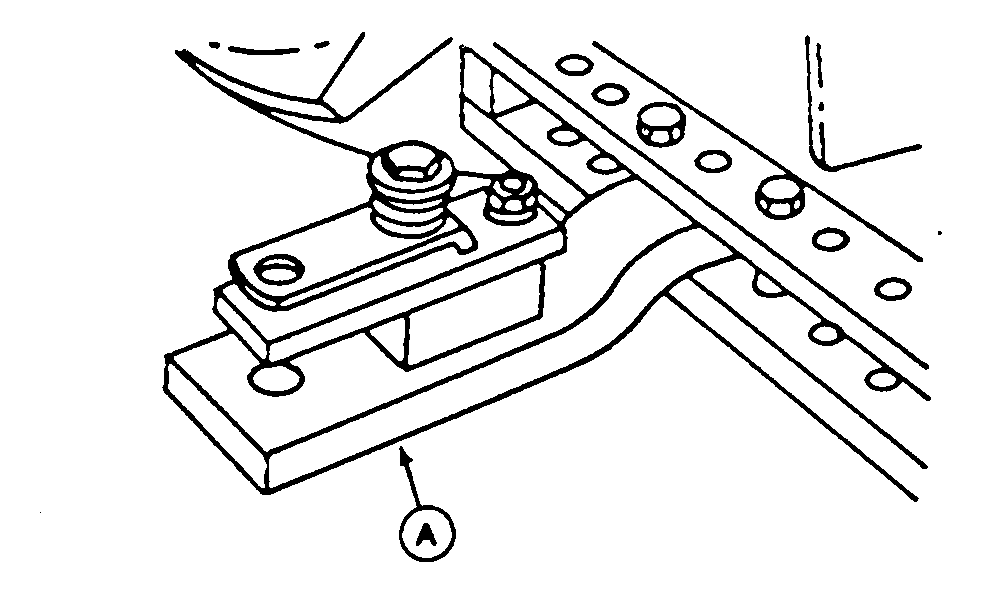

Pin tractor drawbar (A) tightly in center down position.


A-Drawbar

N41041

HX,1820OML,A5A -19-11MAR98-1/1
