Install Transport Wheel Cylinder Locks

NOTE: Install transport locks after transport wheels are lowered to ground and wings are folded.

NOTE: If using Duck Down Feature, transport cylinder locks are not installed

1. Remove cylinder locks (A) from storage position.

IMPORTANT: To avoid machine damage, use cylinder locks on all transport wheel cylinders.

2. Install cylinder locks in transport position using L-pins (B) and cotter pins (C).


A-Cylinder Locks
B-L-pins
C-Cotter Pins

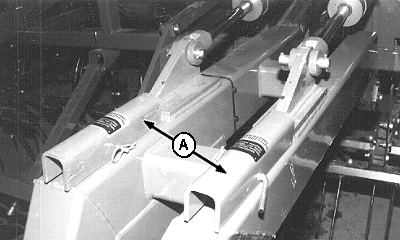

A42118

Storage Position

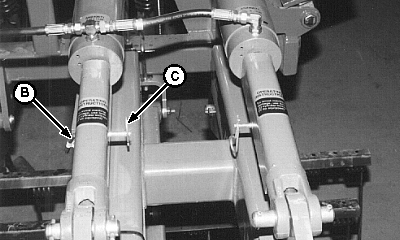

A42119

Transport Position
