Checking Standard Bushings

NOTE: A new shank assembly could have 0mm to 19 mm (0 in. to 3/4 in.) side-to-side movement.

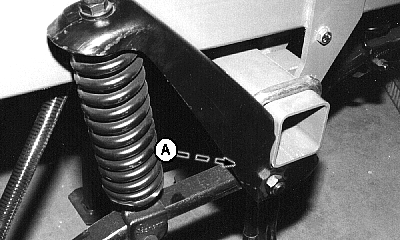

When side-to-side movement of shank measures 38 mm to 51 mm (1-1/2 in. to 2 in.) at the sweep, replace worn chrome bushings (A).

A-Bushing
