Replacing Press Wheels

When replacing press wheels, place wrenches (A) on nuts (each end) hold axle stationary, remove damaged wheel and install new.

Lubricate threads and tighten wheel gang nut according to specifications.

Specification

Wheel Gang Nut -Torque 830 N·m (625 lb-ft)

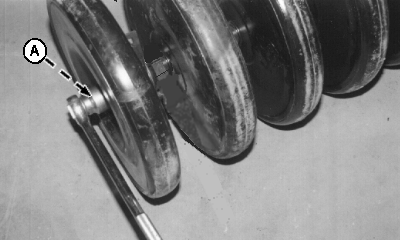

A-Wrench Location

A42056

HX,1820OMP,A8A -19-11MAR98-1/1
