Preparing Hydraulic System-Tractors With Mechanical SCV Controls

IMPORTANT: Always check hydraulic oil with seeding tool in field transport position. Do not overfill tractor reservoir to prevent overflow when wings are folded and press wheels are retracted.

NOTE: Tractor hydraulic oil flow must be at least 45 L/min (12 gpm) for proper operation of the machine.

1. Check hydraulic oil level. Fill, if necessary.

2. Turn metering valves (A) to fast operation for frame lift and wing fold.

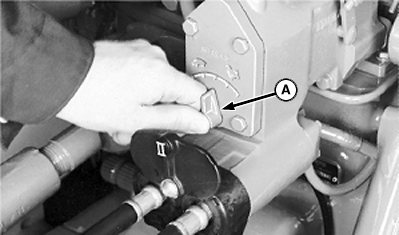

A-Metering Valve
