Lever Lock Clip-Tractors With Mechanical SCV Controls

NOTE: Install lock clip into SCV III for use with fan motor hydraulics.

NOTE: Clip keeps the lever from returning to neutral to maintain constant oil pressure to the fan motor system.

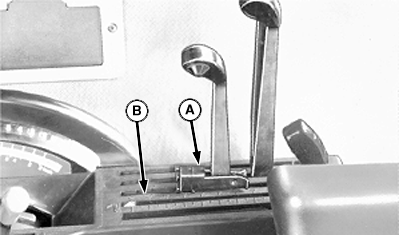

Lever lock clip R52667 (A) must be used to hold the SCV III in the forward position (B). See INSTALLING LEVER LOCK CLIP in this Section.

A-Lever lock clip R52667
B-Position

HX,1820OMV,A11A -19-23MAR05-1/1
