Installing Lever Lock Clip-Tractors With Mechanical SCV Controls

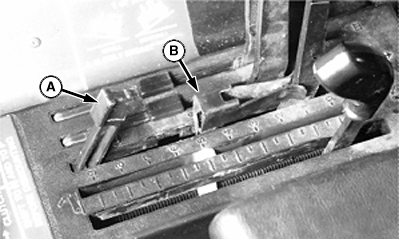

1. Lift float lock-out stop (A).

2. Squeeze sides of lock clip (B) and insert into groove as shown.


A-Float Lock-out Stop
B-Lock Clip

N42122FD

HX,1820OMV,A13A -19-11MAR98-1/2

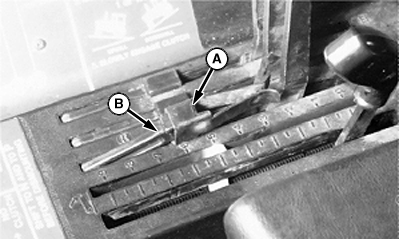

3. Slide lock clip (A) over lock-out stop (B).

4. Push lock-out stop and lock clip down.

5. Push handle forward to secure in clip.


A-Lock Clip
B-Float Lock-out Stop

N42122FE
N42122FG
N42122FH

HX,1820OMV,A13A -19-11MAR98-2/2
