Connecting Optional Monitor Wiring-If Equipped

If hoe drill is equipped with optional blockage monitoring, attach communications interface harness to plug (A) at cart controller.

Tow Between Cart: When tillage is equipped with optional seed counting sensors, attach communications interface harness to plug (A) at cart controller.

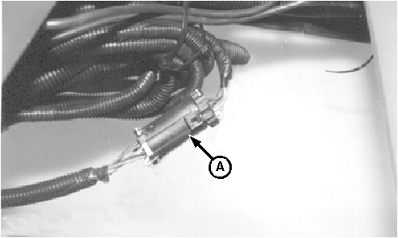

A-Plug

HX,1820OMZ,A20A -19-11MAR98-1/1
