OMA83105: 1820 Flex Air Hoe Drill , Block File: OUO6030_000035F_19

Determining Tractor Requirements

1. See Recommended Tractors in Specifications section.

2. Install adapters, if tractor does not have ISO hydraulic couplers. See your John Deere dealer.

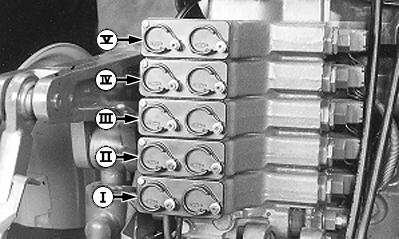

With Electro/Hyd SCV Controls

RW5836

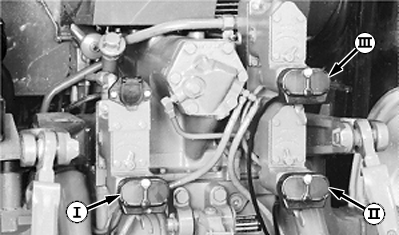

With Mechanical SCV Controls

OUO6030,000035F -19-24MAR04-1/3

NOTE: If your John Deere tractor is not equipped with a low-pressure drain connection, order installation kit from your John Deere dealer. See Low Pressure Drain Connection for kit listing.

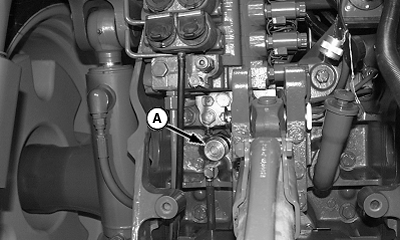

3. Tractor MUST be equipped with a low-pressure drain port (A) for connection of fan motor case drain.

A-Low-Pressure Drain Port

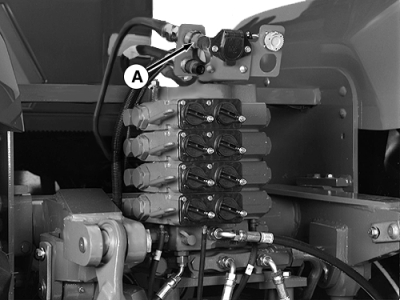

8000 Series Tractor

RW56256

9000 Series Tractor

OUO6030,000035F -19-24MAR04-2/3

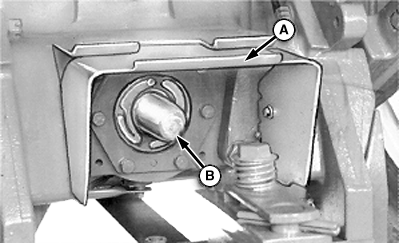

causym CAUTION: Make sure tractor master shield (A) and driveline guard (B) are in place at all times, to prevent entanglement with rotating PTO shaft. Coming in contact with a rotating PTO shaft can severely injure or kill you.

4. Consult tractor operator's manual for specific adjustment procedures, tire inflation, wheel spacing, and ballast requirements.

A-Master Shield
B-Driveline Guard

OUO6030,000035F -19-24MAR04-3/3
