OMA83105: 1820 Flex Air Hoe Drill , Block File: OUO6030_0000362_19

Attaching Air Hoe Drill or Tow Between Cart to Tractor

causym CAUTION: Help prevent personal injury caused by unexpected movement of the machine. Engage parking brake and/or place transmission in "PARK" shut off engine, and remove key before working around hitch.

1. Back tractor into position and attach hitch link to drawbar using pin (A). Be sure hitch pin is secured with spring strap or hex nut.

causym CAUTION: A safety chain will help control drawn equipment should it accidentally separate from the drawbar while transporting. A runaway machine could cause severe injury or death to a motorist, bystander or the operator. Using the appropriate adapter parts, attach the chain to the tractor drawbar support or other specified anchor location. Provide only enough slack in chain to permit turning. See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine.

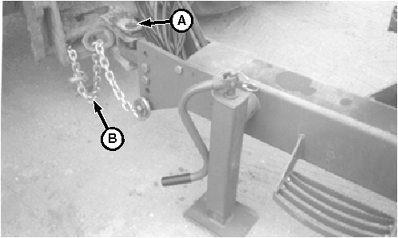

2. Attach safety chain (B) to tractor drawbar.

Tow-Between Cart Shown

A-Pin
B-Chain

OUO6030,0000362 -19-26OCT04-1/5

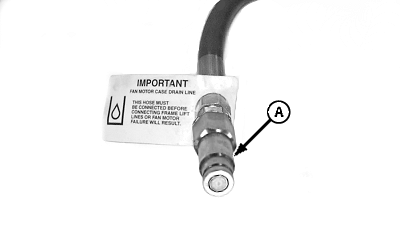

IMPORTANT: Fan motor case drain MUST be attached to low pressure drain connection or fan motor will be damaged.

Installation of a Low Pressure Drain Line Kit is required, if towing tractor is not so equipped.

Other ports at the rear of the tractor (such as power-beyond ports) may be similar in appearance and size to low-pressure drain port. Due to high back-pressure, over 172 kPa (1.72 bar) (25 psi), drain connection to these ports will result in fan motor damage.

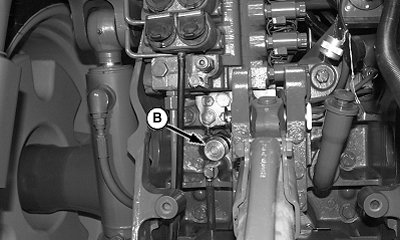

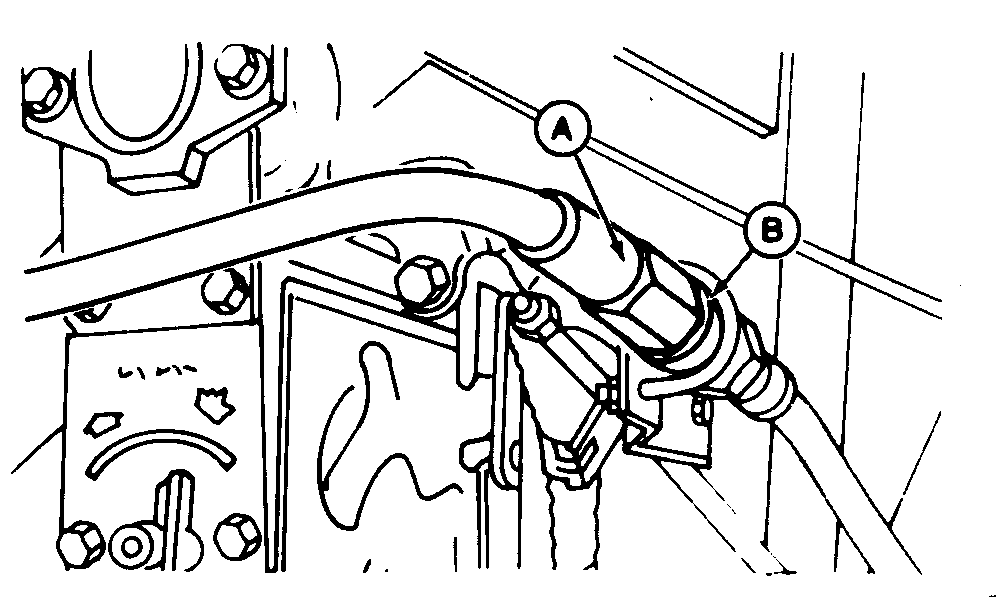

3. Attach fan motor case drain hose (A) to low pressure drain coupler (B).

A-Hose
B-Drain Coupler

60 and 70 Series 4WD Tractors

A54064

8000 Series Tractors

A43331

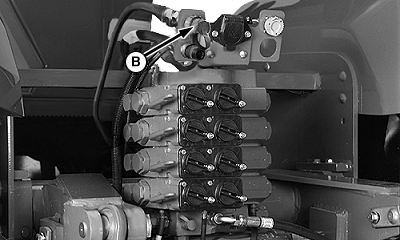

9000 Series Tractors

OUO6030,0000362 -19-26OCT04-2/5

causym CAUTION: Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before attaching hydraulic hoses to couplers.

Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

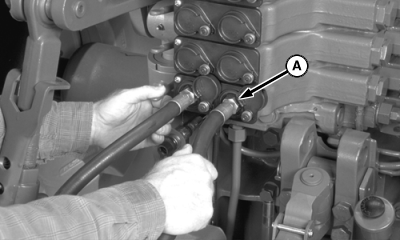

4. Plug lift hoses (A) into SCV I hydraulic coupler.

5. Plug wing-fold hoses into SCV II hydraulic coupler.

6. Plug fan/auger hoses into SCV III hydraulic coupler.

Connect hoses so fan turns with SCV lever in forward position. Usually the hose with the one-way check valve goes in the left-hand SCV port. One-way check valve prevents fan from turning backward.

A-Lift Hoses

With Mechanical SCV Controls

N48100

With Electro/Hyd. SCV Controls

OUO6030,0000362 -19-26OCT04-3/5

7. Connect cart controller communications cable (B) to plug (A).

A-Plug
B-Cable

60 Series Tractor

OUO6030,0000362 -19-26OCT04-4/5

NOTE: Field installation of 7-Terminal Auxiliary Electric Kit RE17282 is required if towing tractor is not equipped with an electrical outlet. See your John Deere dealer for installation.

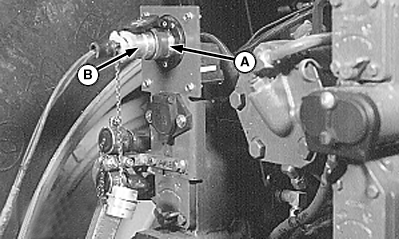

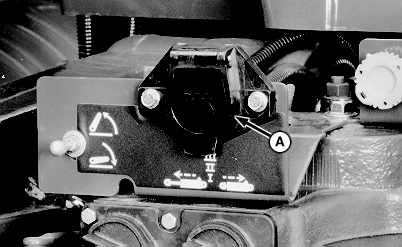

8. Plug controller power and warning light cable into tractor electrical outlet (A).

A-Outlet

8000 Series Tractor Shown

OUO6030,0000362 -19-26OCT04-5/5
