Opening and Closing Hydraulic Lock-Up Valve

After making hydraulic hose connections to tractor, open hydraulic lock-up valve (A) and check frame lift operation.

Before transporting, raise machine fully using lift cylinders and close hydraulic lock-up valve.

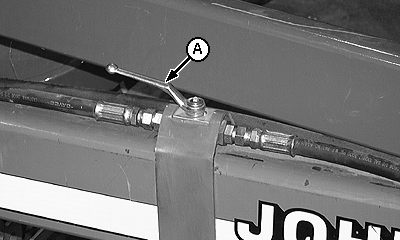

A-Hydraulic Lock-Up Valve

OUO6435,0001DB9 -19-05APR05-1/1
