Installing CCS Control Console-30-70 Series Tractors

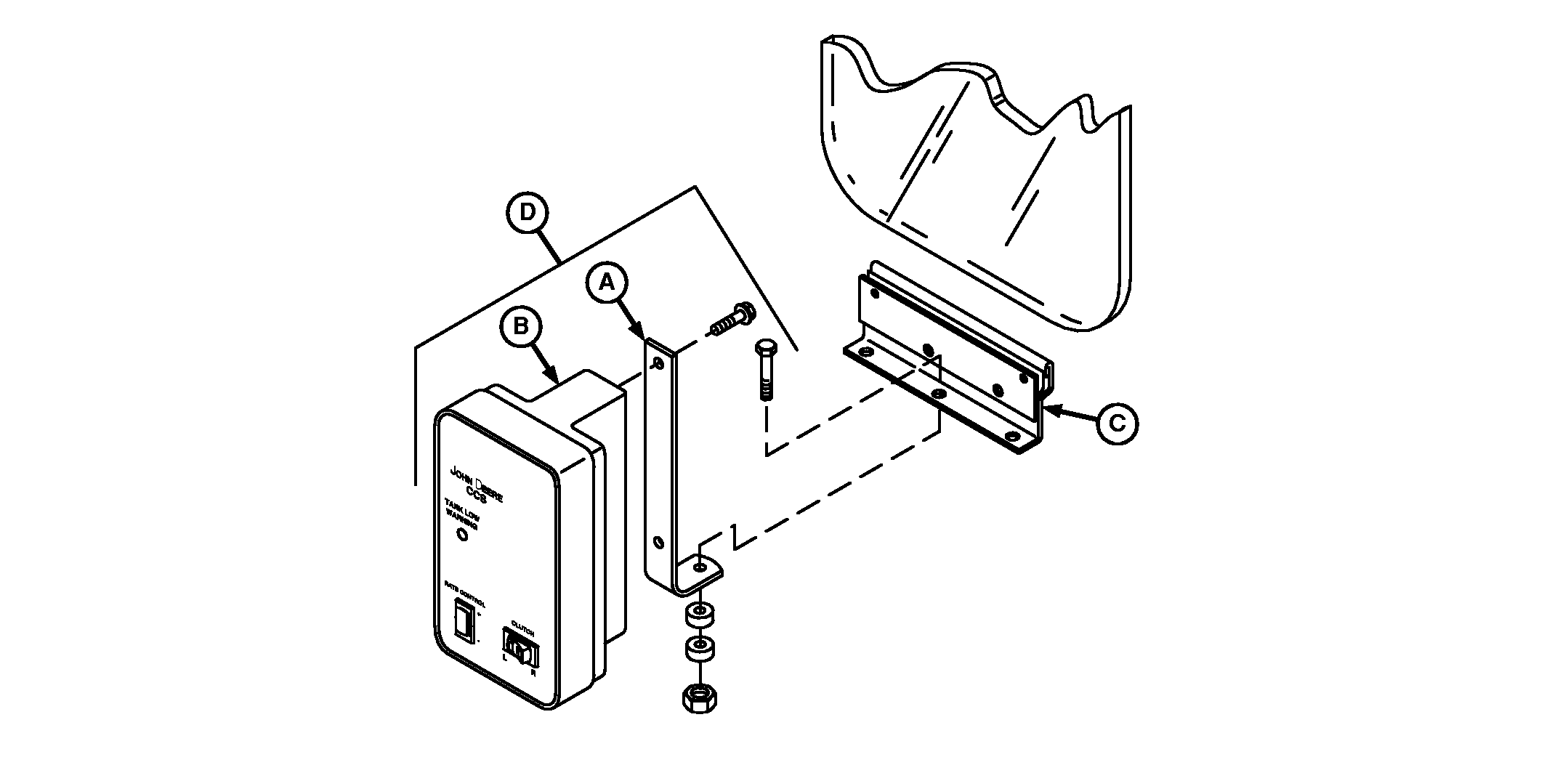

A49564


A-L bracket


B-Console


C-Window Bracket (Not Provided W/CCS Unit)


D-Console Assembly

OUO6023,0001748 -19-18MAR03-1/2

1. Attach bracket (A) to back of control console (B) with two M6 x 12 cap screws (C).

2. Install window bracket.

3. Install control console assembly to window bracket.


A-Bracket
B-Control Console
C-Cap Screws

A48236

OUO6023,0001748 -19-18MAR03-2/2
