Setting Transmission

Transmission output speed is crank adjusted to agree with recommended setting shown on rate chart.

OUO6023,0001780 -19-18MAR03-1/2

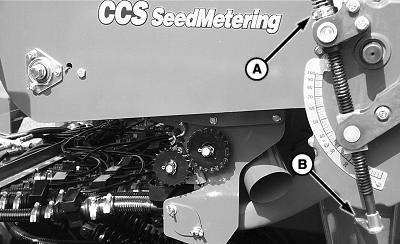

To manually adjust transmission, pull down on spring-loaded drive disconnect collar (A) and turn crank handle (B) to align pointer with desired setting.

A-Disconnect Collar
B-Crank Handle

OUO6023,0001780 -19-18MAR03-2/2
