Replacing Feed Gates

1. Empty tanks. See TANK CLEANOUT in Operating Machine-Tanks and Platform section.

OUO6023,00017CA -19-18MAR03-1/2

2. Loosen nuts (B) enough so that metering cup (C) can be moved forward.

3. Remove old feed gate (A) and replace with new feed gate.

4. Tighten nuts (B) to specification.

Specification

Nut -Torque 5 N·m ± 1 N·m 44 lb-in. ± 9 lb-in.

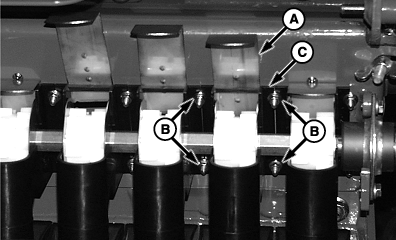

A-Feed Gate
B-Nut
C-Metering Cup

A49172
