1690 Chain Routings

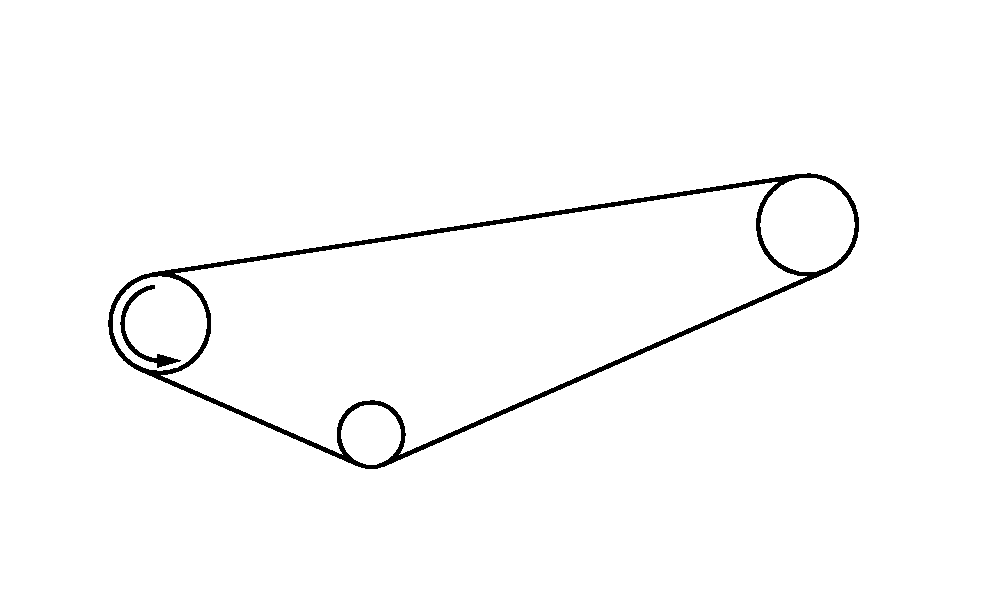

Transmission Input Chain

Agitator Input Chain

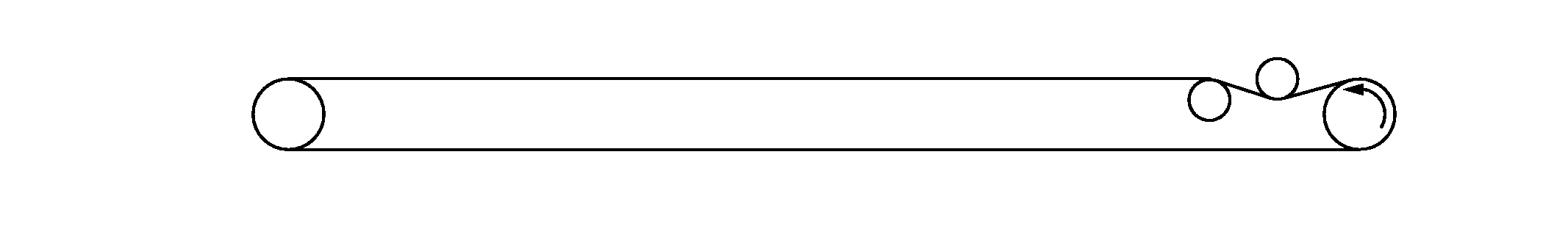

Transmission Output Chain-9.1 m (30 ft) and 10.7 m (35 ft) Only

Vertical Drive Chain

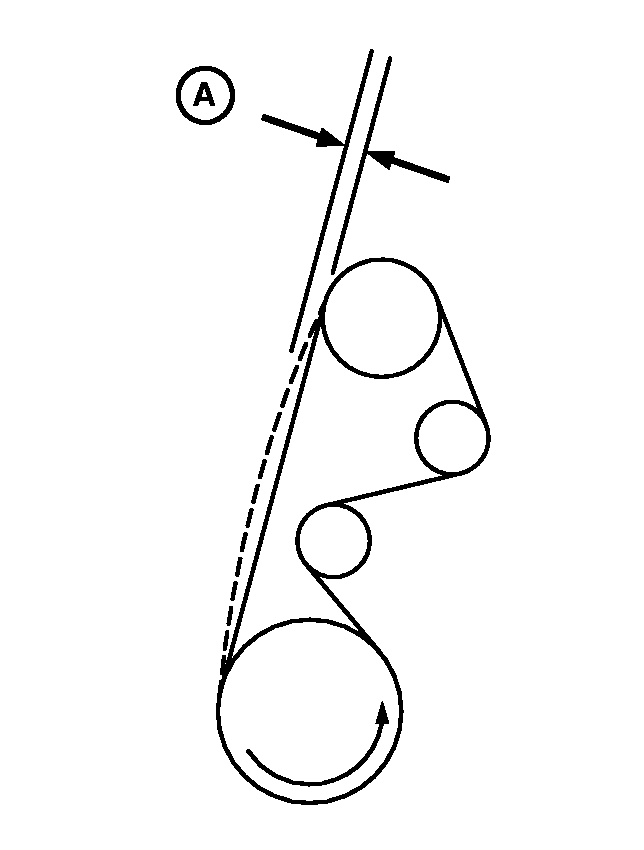

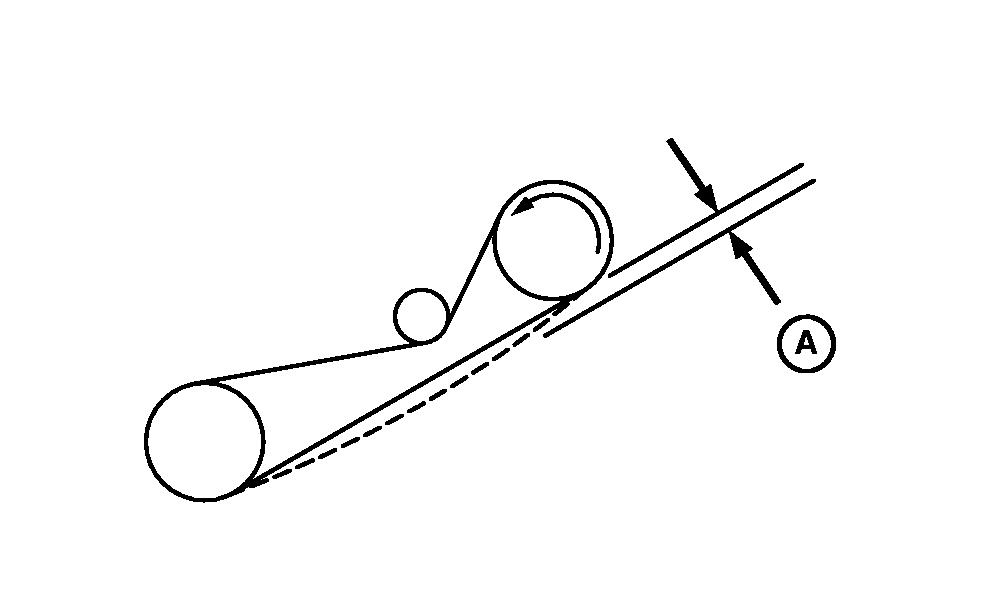

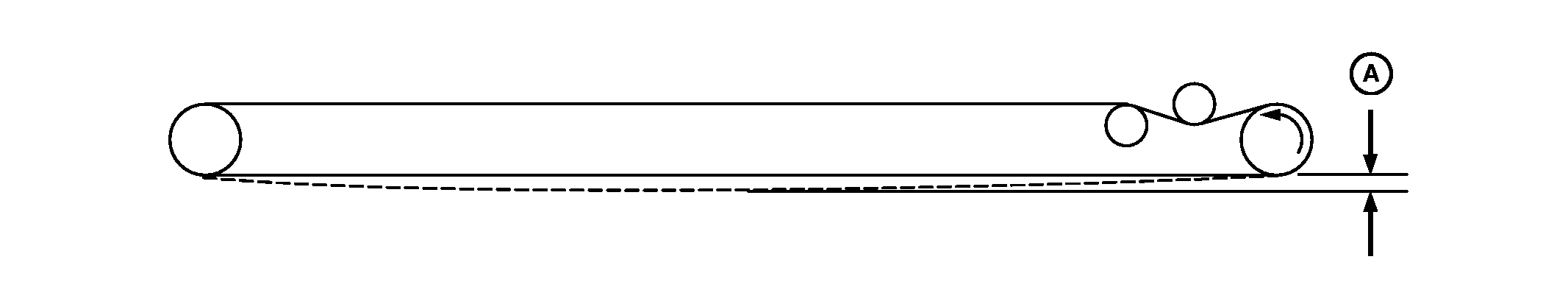

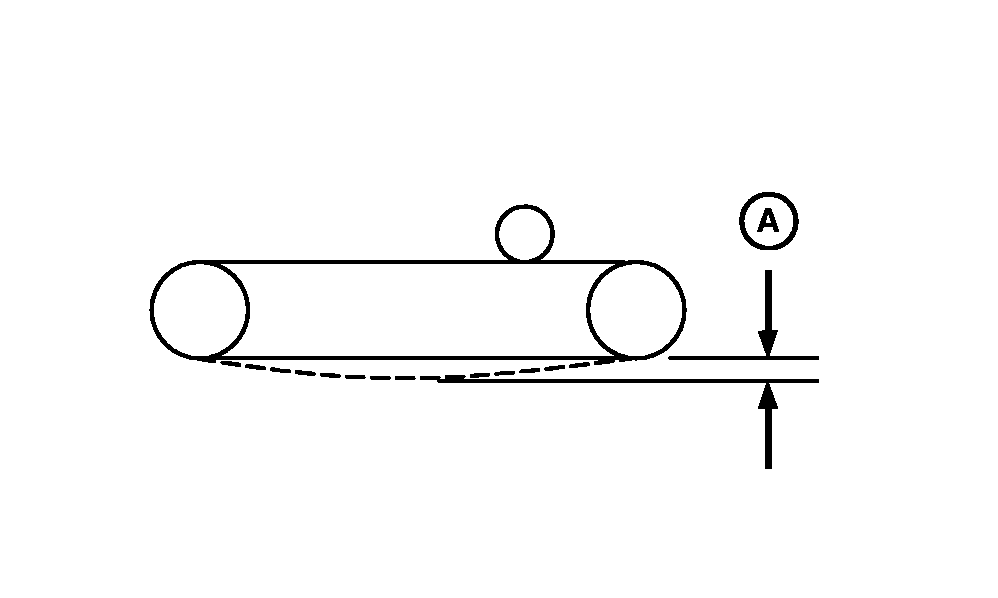

A-Adjust idler to permit 12 mm (1/2 in.) deflection of chain at longest span.

OUO6030,00003C8 -19-10MAY05-1/2

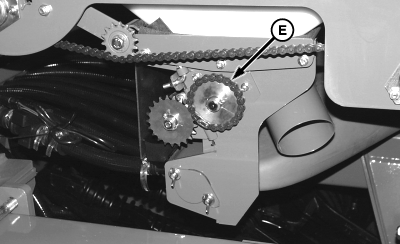

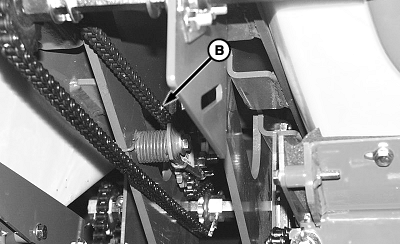

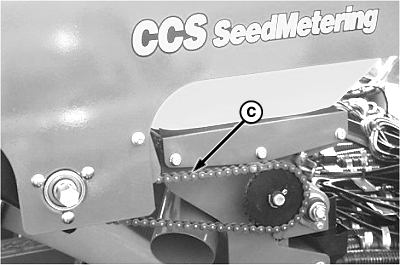

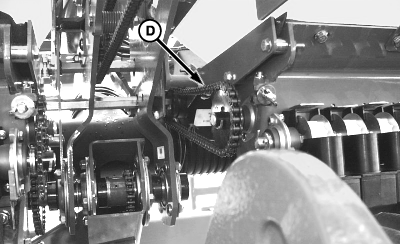

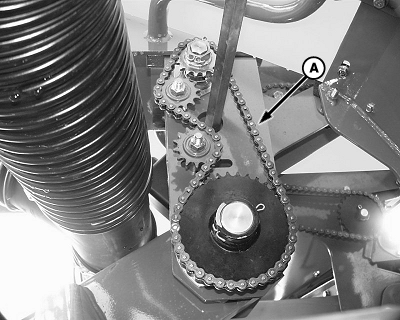

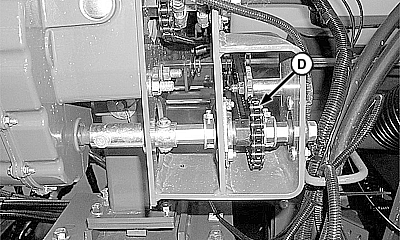

	A-Drive To Shaft One B-Shaft One To Transmission Shaft "In" C-Transmission Shaft "Out" To Meters, Outside D-Transmission Shaft "Out" To Meters, Inside E-Meter Chain
