Selective-Control-Valve Lever Stop (30-60 Series Tractor)

IMPORTANT: Damage to fan motor may occur if operated without lever stop (A).

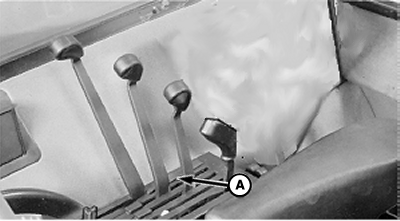

To install selective-control-valve lever stop (A), proceed as follows:


A-Lever Stop

A46439

OUO6023,0001680 -19-18MAR03-1/3

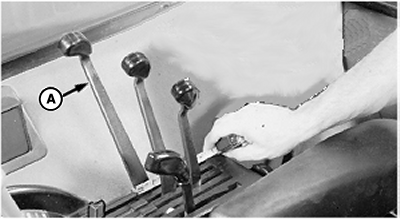

1. Push SCV lever (A) forward against float stop (B).

2. Measure dimension (C).

3. Cut rubber strip to dimension (C).

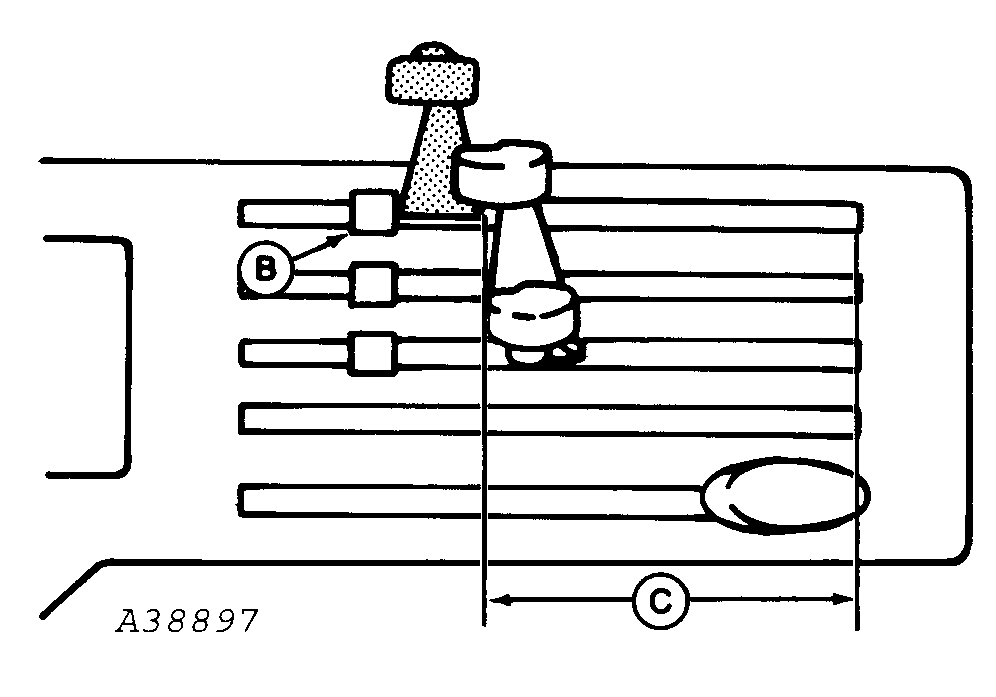

A-SCV Lever
B-Float Stop
C-Dimension

A46440
A38897

OUO6023,0001680 -19-18MAR03-2/3

4. Insert rubber stop (A) in slot with "V" groove side down behind selective control lever.

5. If rubber strip is not correct length, the SCV could have a high-pressure leak to return.

6. Check by moving lever from FLOAT to running position with fan motor DISCONNECTED from tractor. Tractor hydraulic system should not make any noise when lever is in run position.

If hydraulic pump activates, tractor valve linkage is mis-adjusted.


A-Rubber Stop

A29670
A46439
