Preparing Hydraulic System-Tractors With Electro/Hydraulic SCV Controls

IMPORTANT: Always check hydraulic oil with seeding tool in field transport position. Do not overfill tractor reservoir or it will overflow when wings are folded and press wheels are retracted.

1. Check hydraulic oil level. Fill if necessary.

OUO6023,0001682 -19-18MAR03-1/3

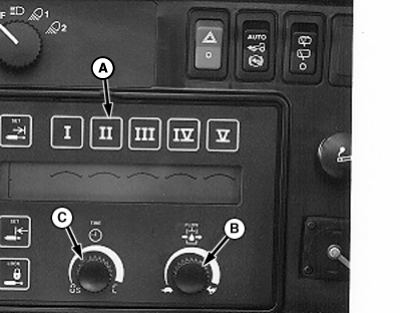

2. WING FOLD/UNFOLD: Press SCV II selector button (A) and turn flow control knob (B) to fast (rabbit) position.

3. Turn time detent knob (C) until display reads "19" seconds. If this is not enough time to completely fold/unfold wings, the time detent button (C) may be set to constant. However, the tractor hydraulic pump will continue to operate after the fold/unfold cylinders have stopped moving. Shutting off pump by moving SCV lever to any position after lever has returned to NEUTRAL is recommended.


A-SCV II Selector Button
B-Flow Control Knob
C-Time Detent Knob

A49244

OUO6023,0001682 -19-18MAR03-2/3

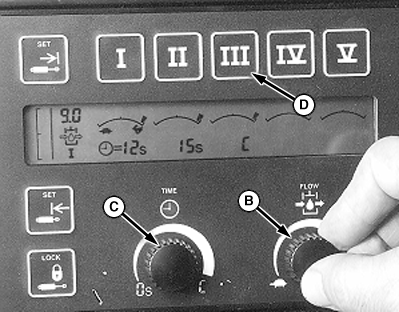

4. DEPTH CONTROL: Press SCV I selector button (A) and turn flow control knob (B) to rabbit position.

5. Turn time detent knob (C) until display reads "8" seconds. This can be increased or decreased, depending on actual time required to lift and lower machine.

6. FAN: Press SCV III selector button (D). Turn time detent knob (C) until display reads "constant". Flow control knob (B) will be used to set fan speed. Increase flow until 18 in. pressure is achieved.


A-SCV I Selector Button
B-Flow Control Knob
C-Time Detent Knob
D-SCV III Selector Button

N48104
N48137

OUO6023,0001682 -19-18MAR03-3/3
