Lever Lock Clip-Tractors With Mechanical SCV Controls

NOTE: The lever lock clip keeps the lever from returning to neutral position. This provides constant oil pressure to the down pressure circuit, as needed, to maintain the chosen opener down-pressure setting.

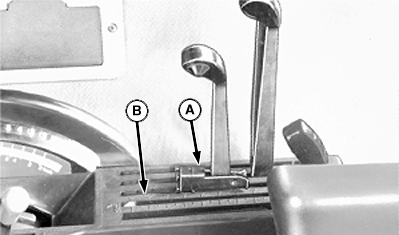

Lever lock clip (A) must be used to hold SCV No. 1 lever in the down-pressure position (B). See INSTALLING LEVER LOCK CLIP in this section.

A-Lock Clip
B-Down-Pressure Position

OUO6023,0001685 -19-18MAR03-1/1
