Installing CCS Control Console-30-70 Series Tractors

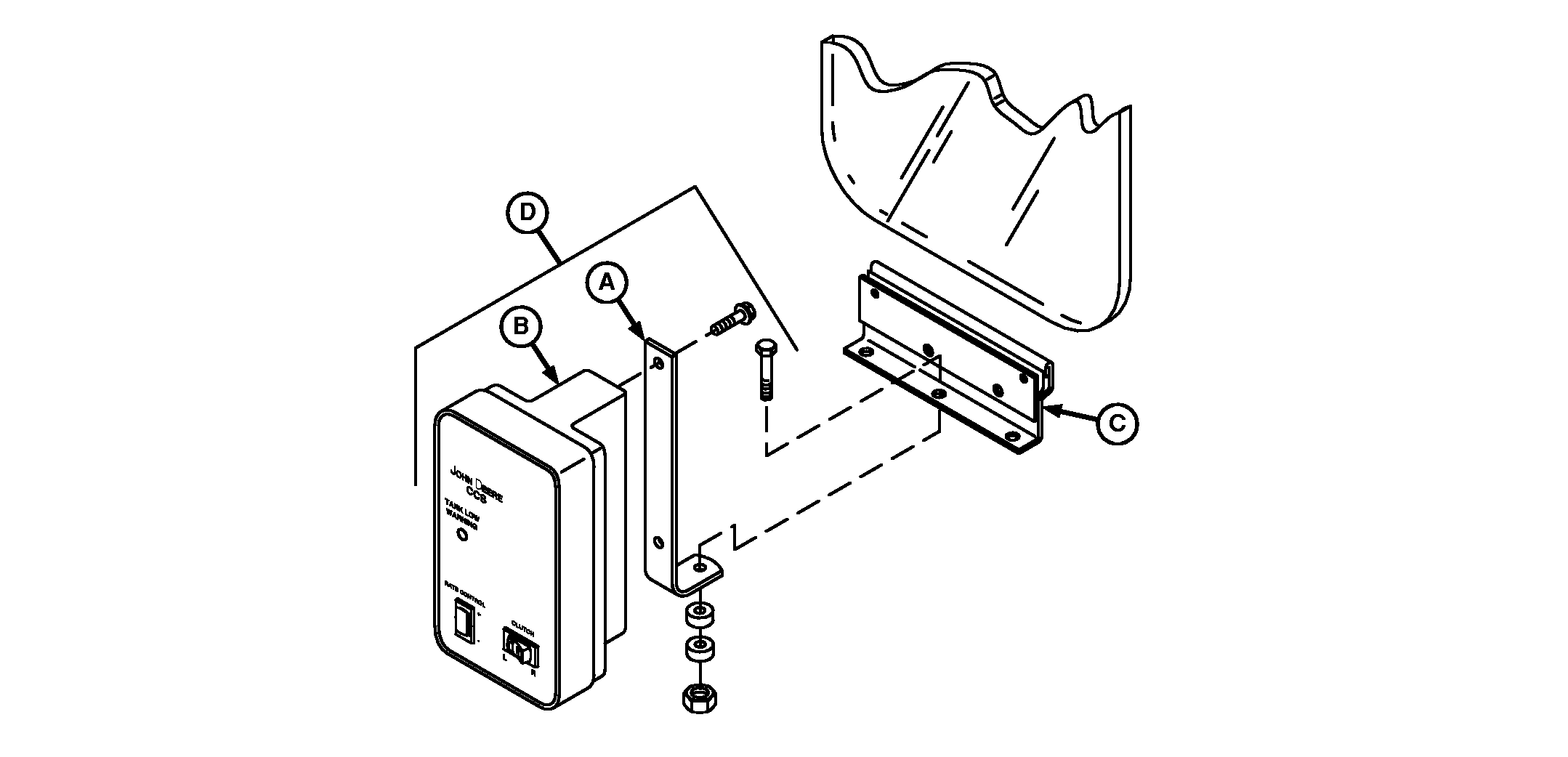

A49564


A-L-bracket


B-Console


C-Window Bracket (Not Provided W/CCS Unit)


D-Console Assembly

OUO6023,0001688 -19-08FEB05-1/2

1. Attach bracket (A) to back of control console (B) with two M6 x 12 cap screws (C).

2. Install window bracket.

3. Install control console assembly to window bracket.

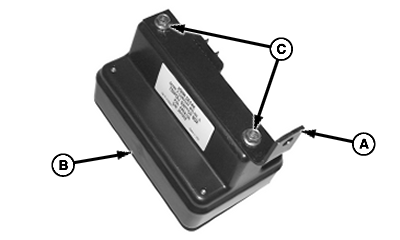

A-Bracket
B-Control Console
C-Cap Screws

A48236

OUO6023,0001688 -19-08FEB05-2/2
