Checking Tire Inflation

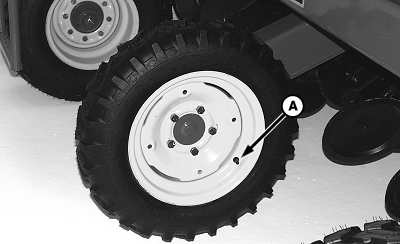

Check and inflate tires (A) to specification.
Tire Size
kPa
bar
psi
Location
11L X 15-8PR I1
248
2.48
36
Wing Frames
11L x 15-10PR I1
303
3.03
44
Wing Frames
31 x 13.5-15 8PR
310
3.10
45
Wing Frames
11L x 15-LRD
414
4.14
60
Center Frames
31 x 13.5-15 10PR
414
4.14
60
Center Frames
5.9 x 15 4 Ply
248
2.48
36
CCS Drive Tire
A-Tire
Drive Tire
OUO6023,000168CCONV1 -19-18MAR03-1/1
