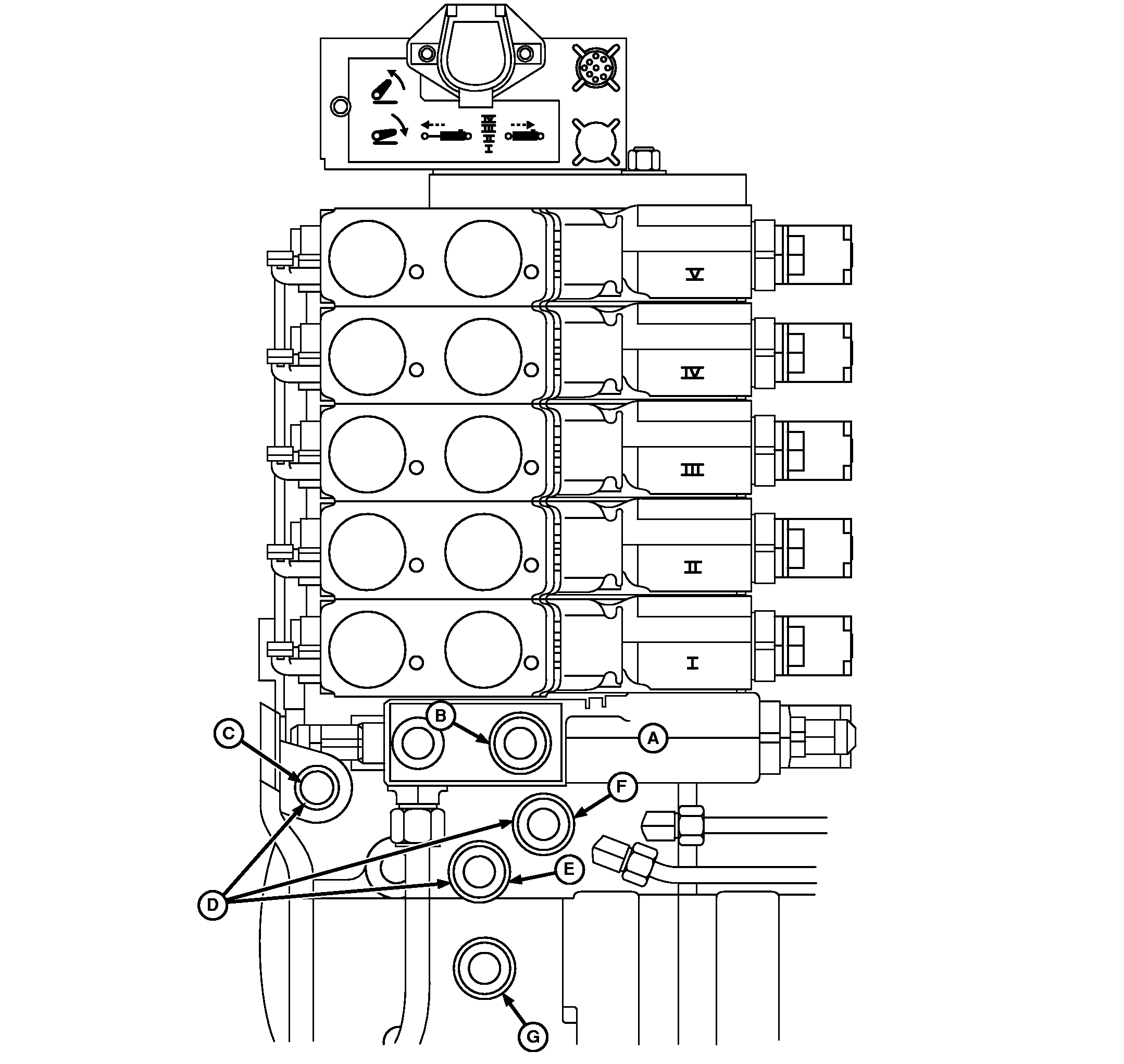

A-Hitch Valve
B-Auxiliary Hitch Valve Port
C-Power Beyond Load Sense Coupler

D-Power Beyond Ports
E-Return Port (Power Beyond or Motor Return)

F-Auxiliary Pressure Port

G-Sump Port (Fan Motor Case Drain Connection)

OUO6023,000169C -19-18MAR03-1/1
