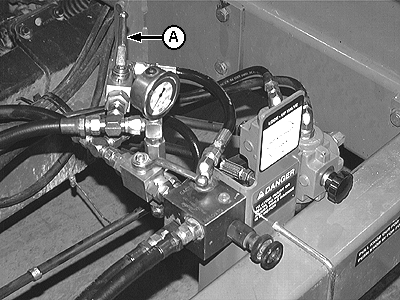

Positioning Change Valve (If Equipped)

Change valve (A) is installed so rockshaft control can be operated with tractors having either an open-center or closed-center hydraulic system.

• For Closed-Center Tractors: OPEN valve.
• For Open-Center Tractors: CLOSE valve.

A-Valve

OUO6023,00016B3 -19-18MAR03-1/1
