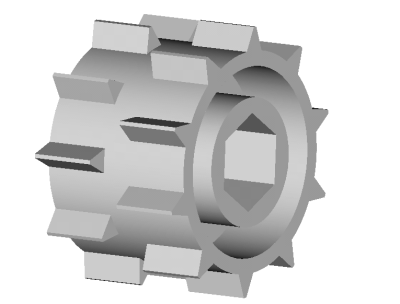

Selecting Meter Wheels

Three types of meter wheels are available to handle different products and/or product delivery needs and application rates.

  • Black 16 mm- Low Rate: Used for applying low rates of sorghum.
  • Black 32 mm-Medium Rate: Used for applying medium rates of sorghum and wheat.
  • White 32 mm-High rates: Applying high-rate products like soybeans and wheat.

Ensure that proper meters are installed for product to be used. See rate charts in Operating Machine-Metering section in this manual.

A48637

OUO6023,00016BC -19-18MAR03-1/1
