Operating Half-Width Disconnect Clutches

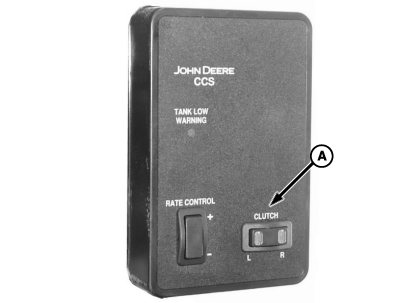

The half-width disconnect clutches are controlled with the clutch switch (A) on the CCS Control Console. While in the center position, both clutches are engaged. To disengage right side, push switch to right. To disengage left side, push switch to left.

A-Switch

OUO6023,00016C0 -19-18MAR03-1/1
