Electronic Population Control System

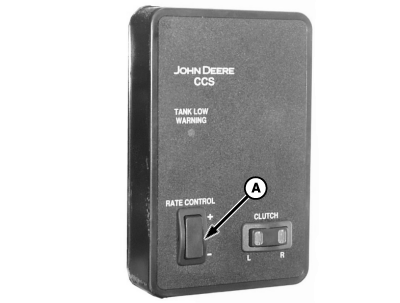

Electronic population control allows the operator to increase or decrease product application rates without leaving the tractor cab by using the rate control switch (A) on CCS control console.

A-Rate Control Switch

OUO6023,00016C2 -19-18MAR03-1/2

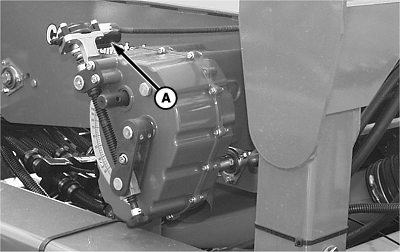

Changing rate settings energizes the transmission mounted rate motor (A); turning adjustment screw to increase or decrease transmission output speed and application rate to agree with operator's selection.

A-Transmission Mounted Rate Motor

OUO6023,00016C2 -19-18MAR03-2/2
