Cleaning Air Chamber

NOTE: Air chamber should be initially cleaned out on a daily basis. Adjust interval as necessary based on amount of material being blown out.

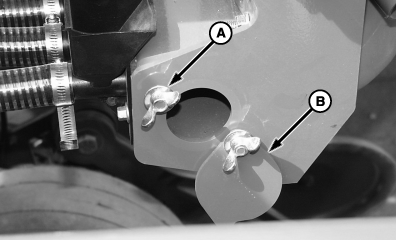

1. Loosen wing nut (A) and open manifold cleanout cover (B).


A-Wing Nut
B-Manifold Cleanout Cover

A49112

OUO6023,00016DD -19-18MAR03-1/2

causym CAUTION: To protect yourself from flying seed and debris, stay in the tractor cab while the fan is running.

If you must leave the cab with the fan running, make sure tractor is in park and wear protective clothing including face mask, gloves and goggles.

Stay clear of manifold opening when fan is running. Seed or foreign material blowing out at high speed can cause serious injury.

2. Start tractor and run fan for 30 seconds to remove product from meter.

3. Stop fan and turn off tractor.

4. Close meter cleanout door.

TS265

OUO6023,00016DD -19-18MAR03-2/2
