Lubricate Opener

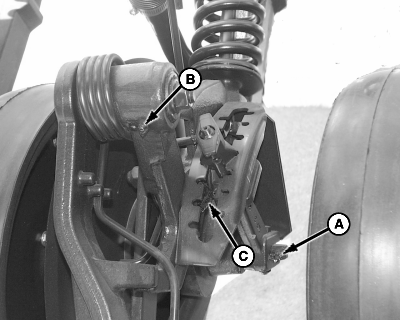

At the end of each season or once a year, apply ten pumps of grease to each opener depth gauge arm (A), press wheel arm (B) and press wheel pivot (C). Cycle depth gauge arm fully in each direction.


A-Depth Gauge Arm
B-Press Wheel Arm
C-Press Wheel Pivot

N60059

OUO6023,00016EA -19-18MAR03-1/1
