Check Transmission Oil Level-Annually

NOTE: For accurate reading, check oil level with machine on a level surface.

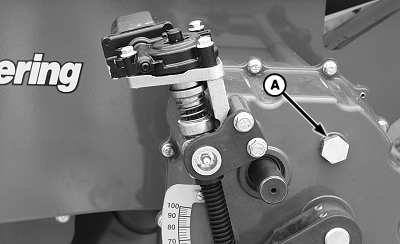

Remove front plug (A) to check oil level. Level is correct when oil is found at the bottom of the plug hole.

If found low, fill to correct level with John Deere PLUS-50 ™ , SAE 15W-40 Oil.

If an oil leak is discovered, see your John Deere dealer for repairs.

A-Front Plug

PLUS-50 is a trademark of Deere & Company.

OUO6023,00016EC -19-18MAR03-1/1
