Checking Wheel Attaching Hardware

Check the tightness of all wheel hardware during the first week of operation, and annually after that.

OUO6023,0001700 -19-18MAR03-1/2

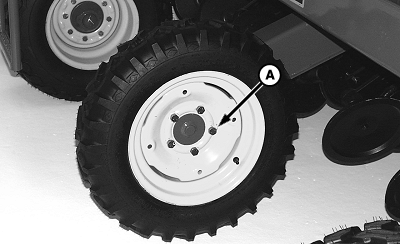

Tighten wheel bolts (A) to specification.

Specification

Wheel Bolts -Torque 155 N·m  (115 lb-ft)


A-Wheel Bolt

A49171

OUO6023,0001700 -19-18MAR03-2/2
