1. Remove hose clamp (D) and hose (A).

2. Remove cap screws (B).

3. Remove old venturi (C).

4. Install new venturi using cap screws (B) previously removed. Tighten to specification.

Specification

Cap Screw -Torque

10 N·m

(89 lb-in.)

5. Attach hose (A) using hose clamp (D).

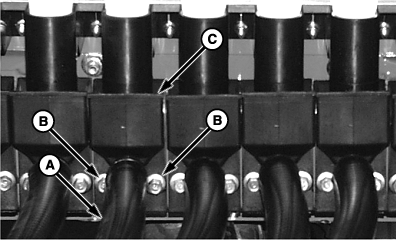

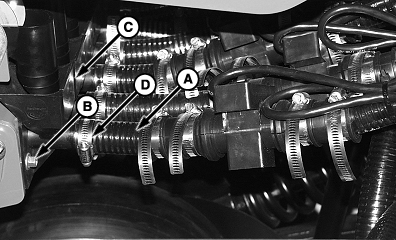

A-Hose
B-Cap Screw
C-Venturi
D-Hose Clamp
