1890 Chain Routings

A51311

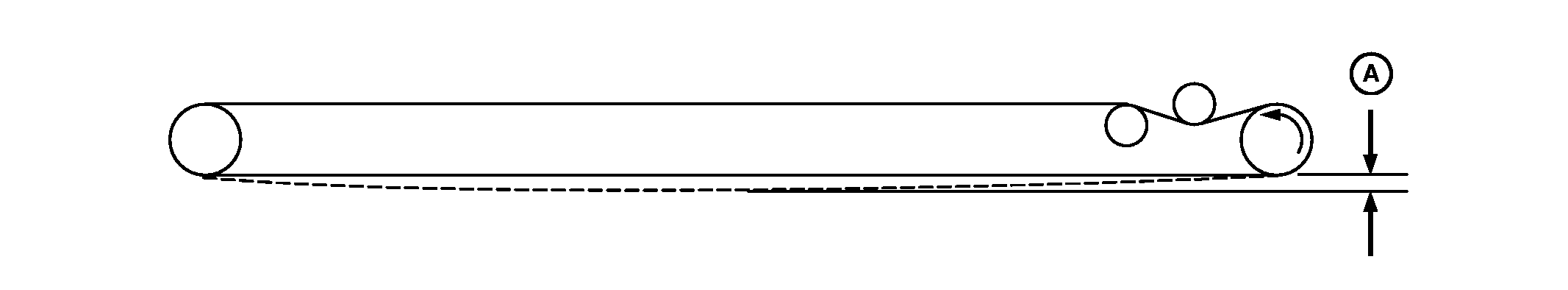

Drive Arm Chain

A56176

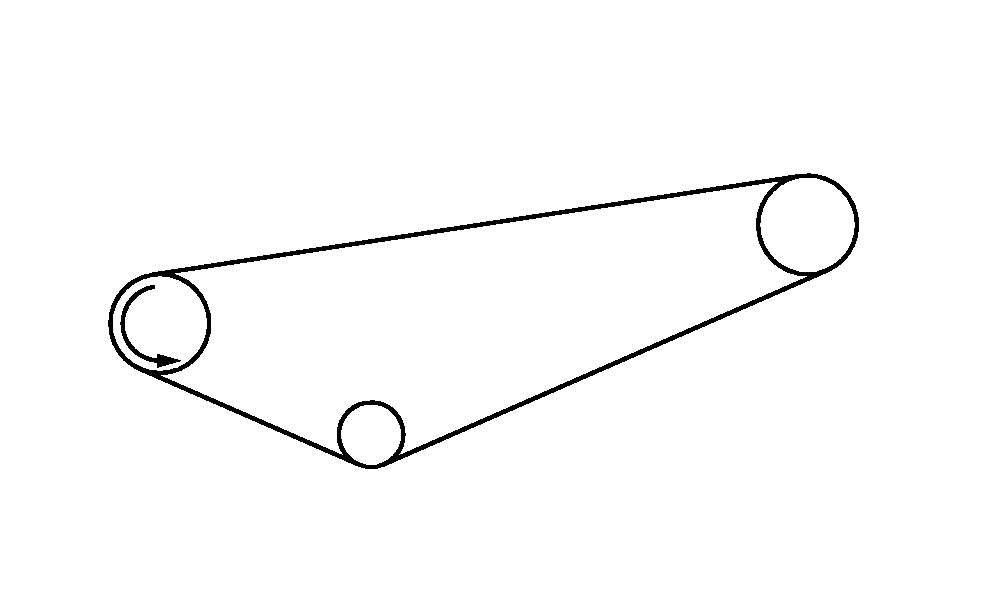

Transmission Input Chain
A51310

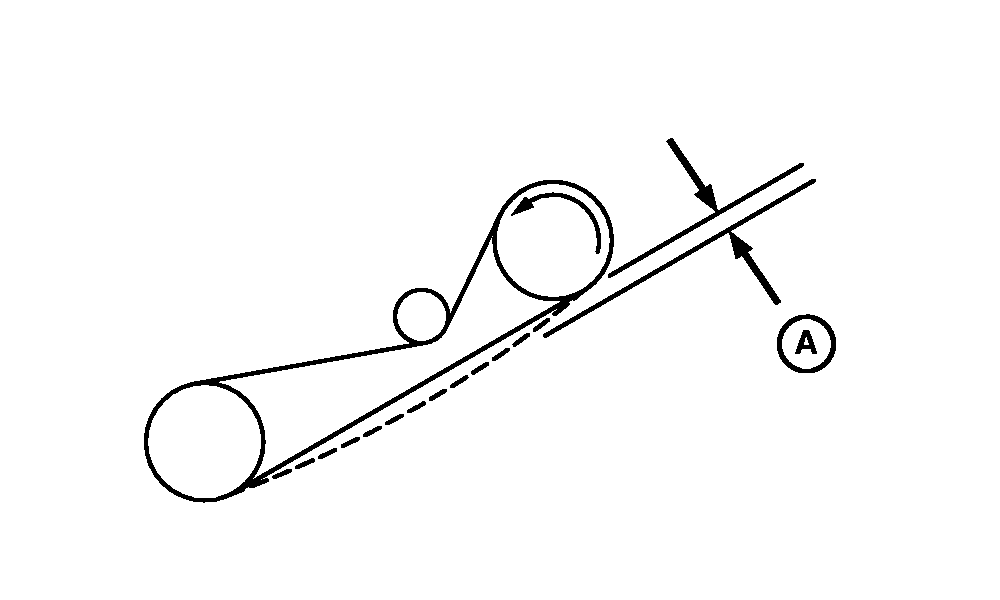

Agitator Input Chain

A56177

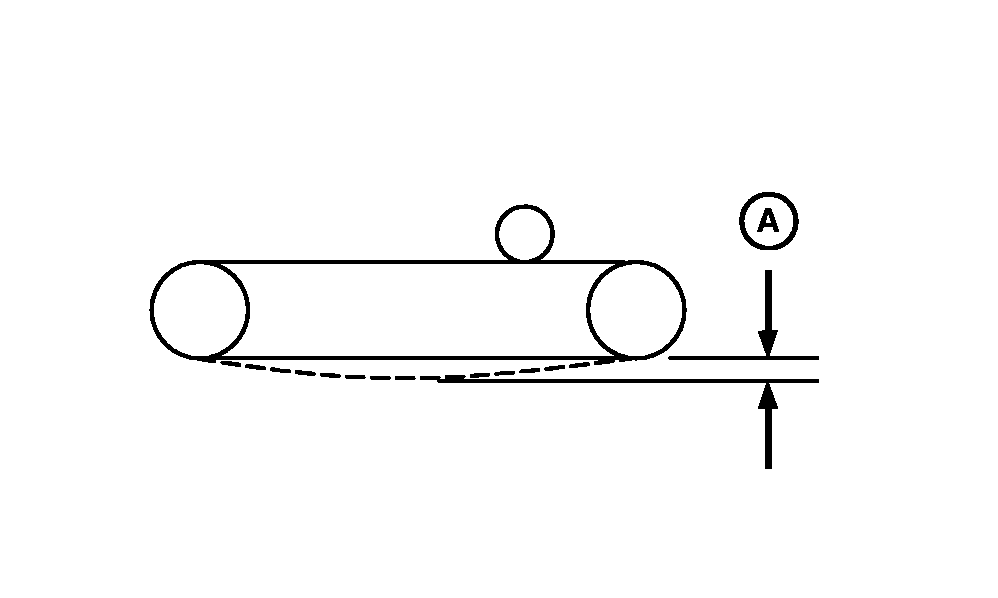

Transmission Output Chain-9.1 m (30 ft) and 11.0 m (36 ft) Only
A56178

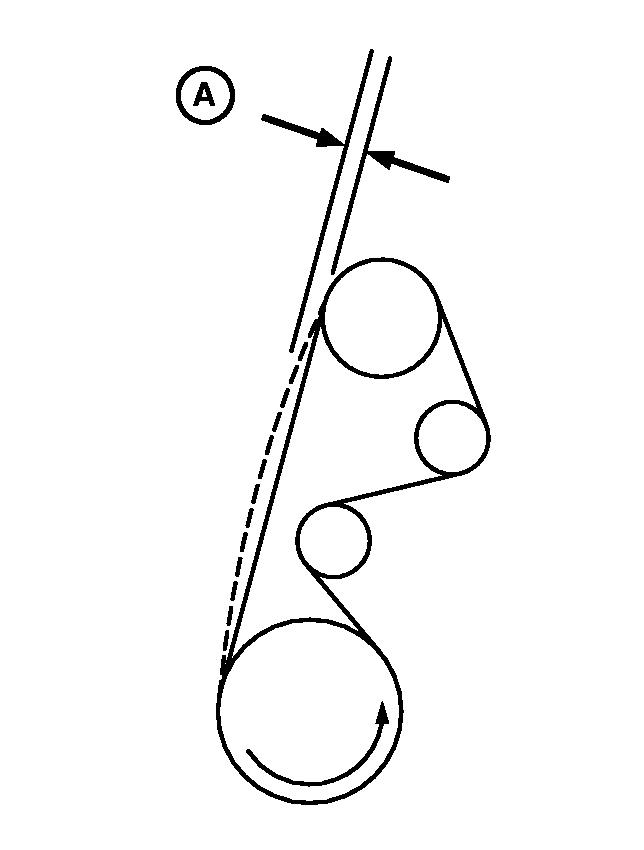

Vertical Drive Chain


A-Adjust idler to permit 12 mm (1/2 in.) deflection of chain at longest span.



OUO6023,000171B -19-10MAY05-1/2

A49706

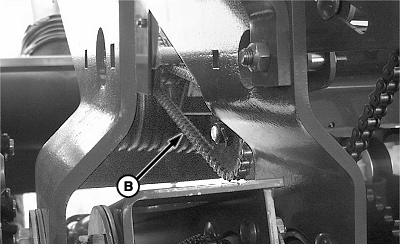

A49704

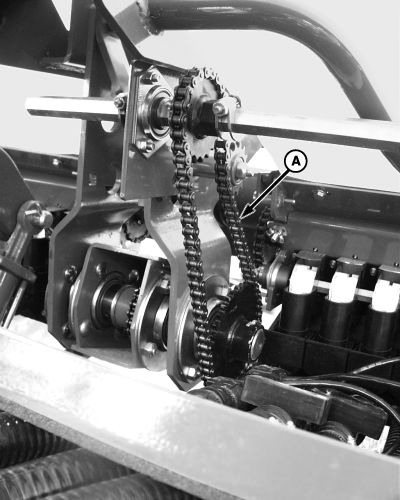

A-Drive To Transmission Shaft "In"
B-Transmission Shaft "Out" To Meters, Inside

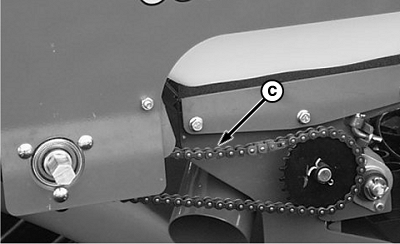

C-Transmission Shaft "Out" To Meters, Outside

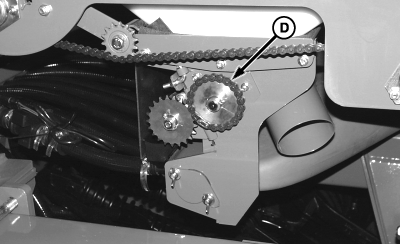

D-Meter Chain

A49705
A49698A

OUO6023,000171B -19-10MAY05-2/2
