Using Warning Lights

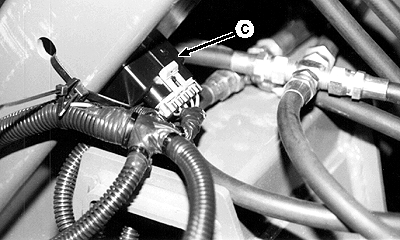

A lighting enhancement module (C) has been incorporated into the lighting circuit. This module causes red tail lights to function as turn signals. During normal transport, both amber warning lights (A) will flash in unison at high intensity and both red warning lights (B) will illuminate at low intensity. When a turn is signaled, the red warning light will flash in direction of turn at high intensity and in unison with the amber warning light. The opposite side amber and red warning lights will illuminate steady at high intensity. |
|
CAUTION:
When transporting the machine on a road or highway at night or during the day, always use the amber warning and red tail lights provided with this machine. Check state and local government regulations for additional requirements. Various lighting and marking safety devices are available from your John Deere dealer. Keep lighting and marking components visible, clean and in good working order. Replace or repair components that have been damaged or lost.
OUO6023,0001768 -19-18MAR03-1/1 |
