Filling Tank

IMPORTANT: Keep seed free of debris. Debris will cause blockage at venturis. Optional fill screen is available, see your John Deere dealer.

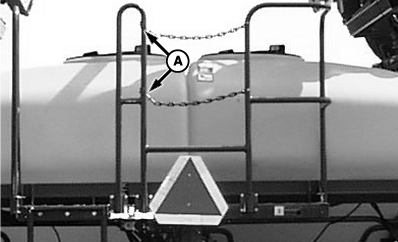

Platform chains (A) must be reattached after filling tank.

Clean out any build up of treatments and talc between fills.

Level of seed must be below tank lid before closing, failure to do so could result in damage to lid.

Remove platform chains (A) to allow auger access to tank.

After filling tanks, reattach platform chains.

A-Platform Chains

OUO6023,0001792 -19-09FEB05-1/1
